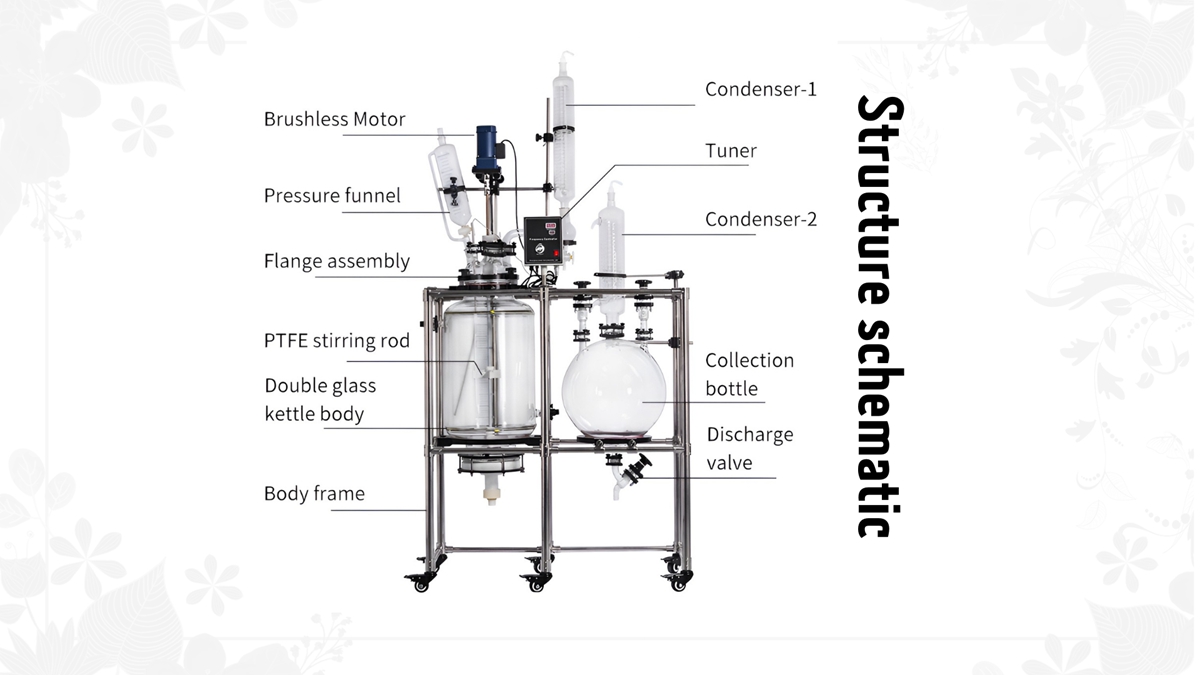

The crystallization reactor is a commonly used biochemical instrument, which combines the functions of the reactor and the filter. It is mainly used in modern fine chemicals, bio-pharmaceuticals, scientific research experiments, etc. It can make crystallization concentration distillation, reflux, separation and purification which is an ideal instrument for teaching, lab test, pilot test and production.
| Glass crystallization reactor | ||||
| Model | GCR10 | GCR20 | GCR50 | GCR100 |

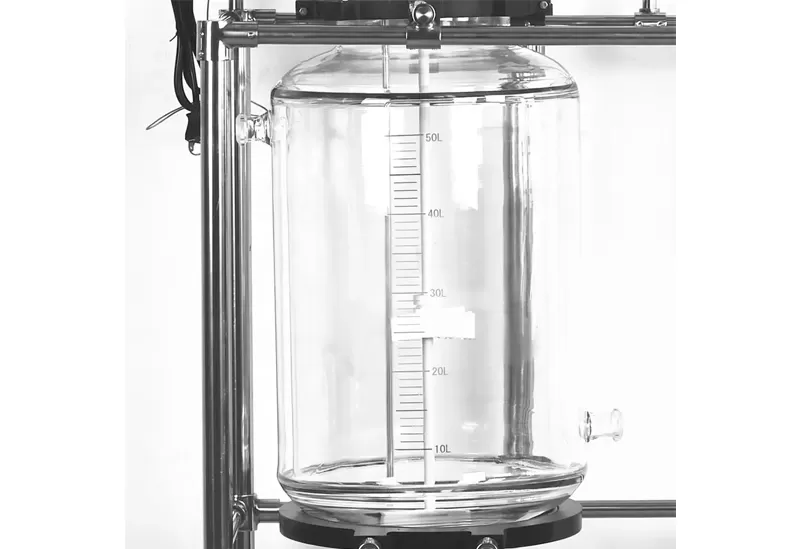

| Reaction Vessel Capacity | 10L / 2.6Gal | 20L / 5.28Gal | 50L / 13.20Gal | 100L / 26.41Gal |

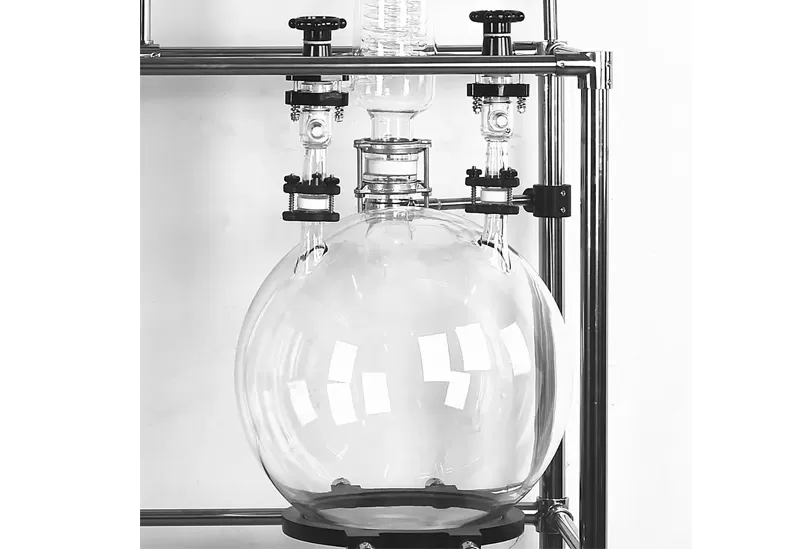

| Liquid Collection Flask Capacity | 10L / 2.6Gal | 10L / 2.6Gal | 30L / 7.8Gal | 50L / 13.20Gal |
| Jacket Capacity | 6L / 1.58Gal | 8L / 2.11Gal | 13L / 3.43Gal | 18L / 4.75Gal |
| Sealing Mode | Patent sealing design, mechanical sealing with ceramic bearing | |||
| Glass Material | High Borosilicate Glass 3.3 (Sanitary grade & Heat/Cold/Chemical resistant) | |||
| Stirring Speed | 0-600RPM | |||
| Working Temperature Range | -80°C to 250°C / -112°F to 482°F | |||

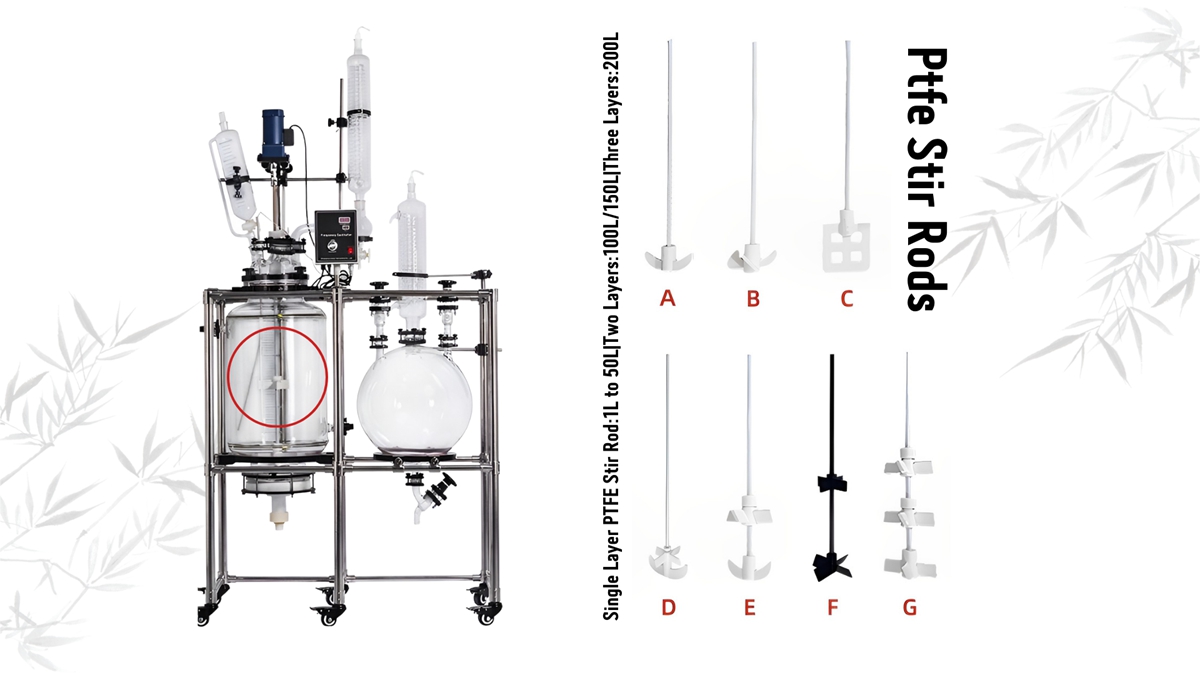

| Stirrer | 1 stage PTFE coated stirrer (Customized) | 2 stage PTFE coated stirrer (Customized) | ||

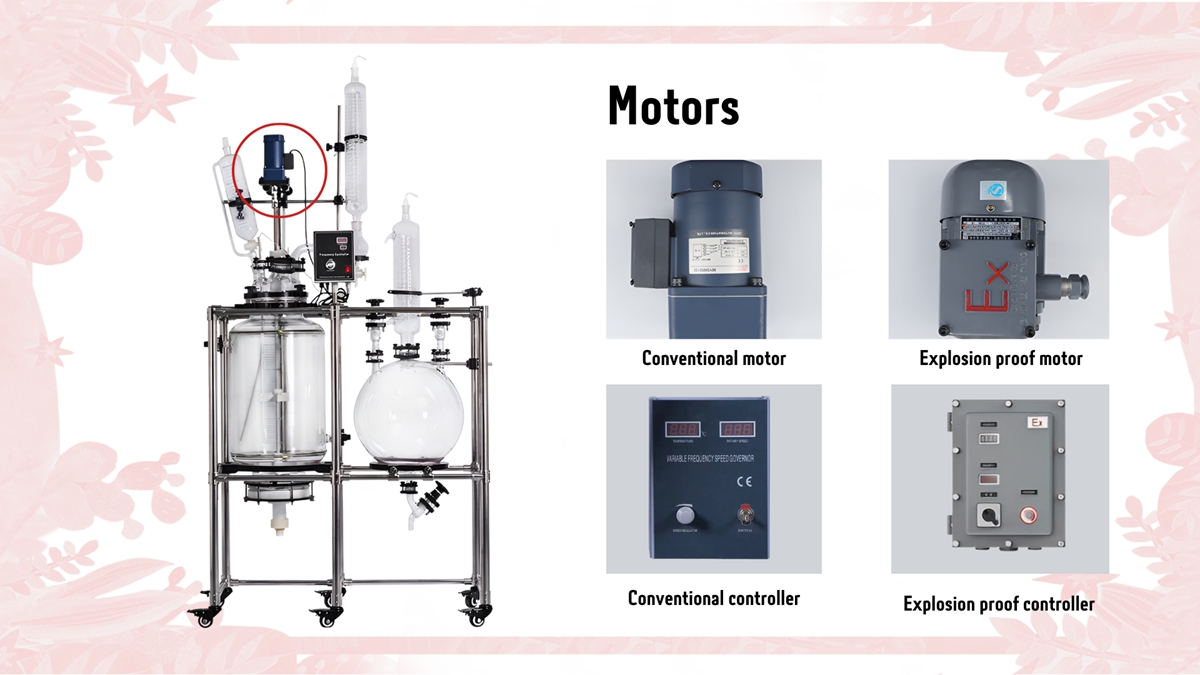

| Motor Power | 120W | 200W | ||
| Power Supply | 110V or 220V, 50/60Hz, Single Phase | |||
| Vacuum Level | Under 0.098Mpa | |||
| Condensation Area | 0.2㎡ | 0.3㎡ | 0.4㎡ | |

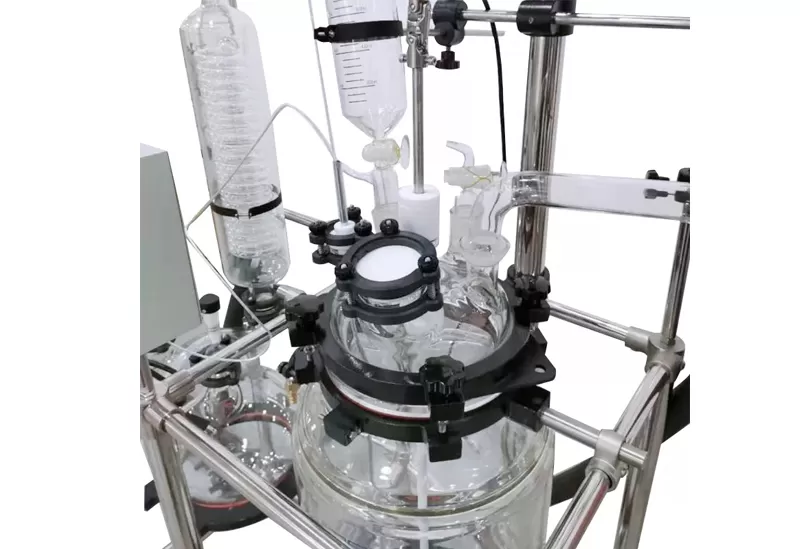

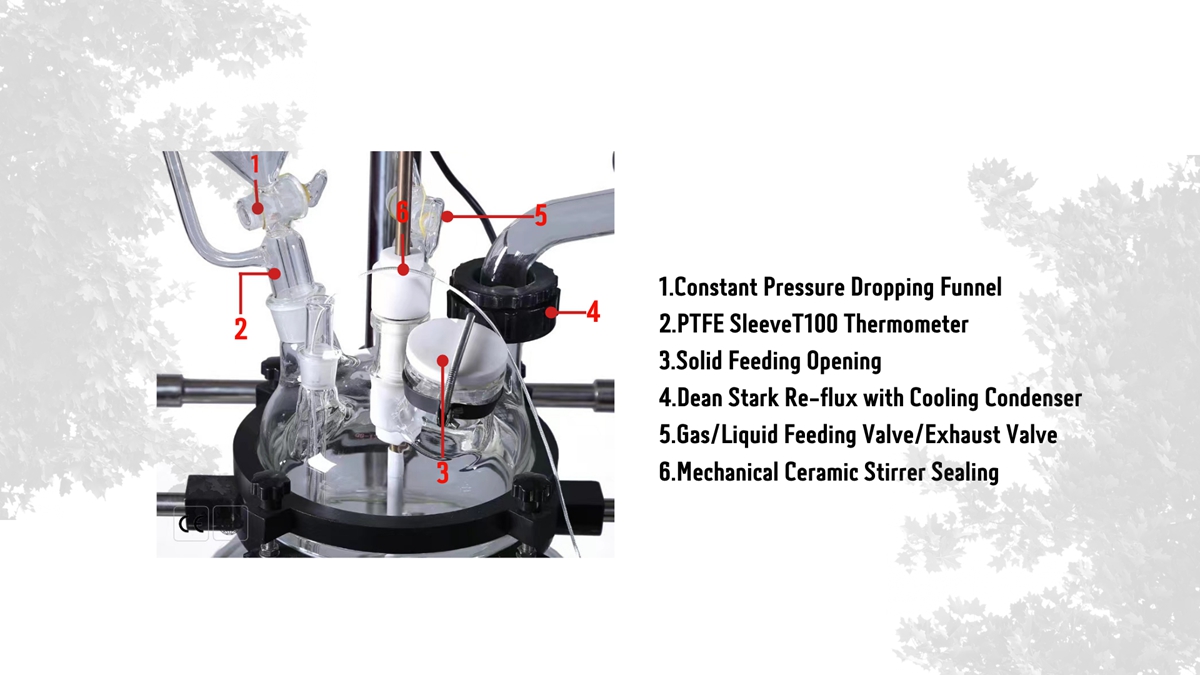

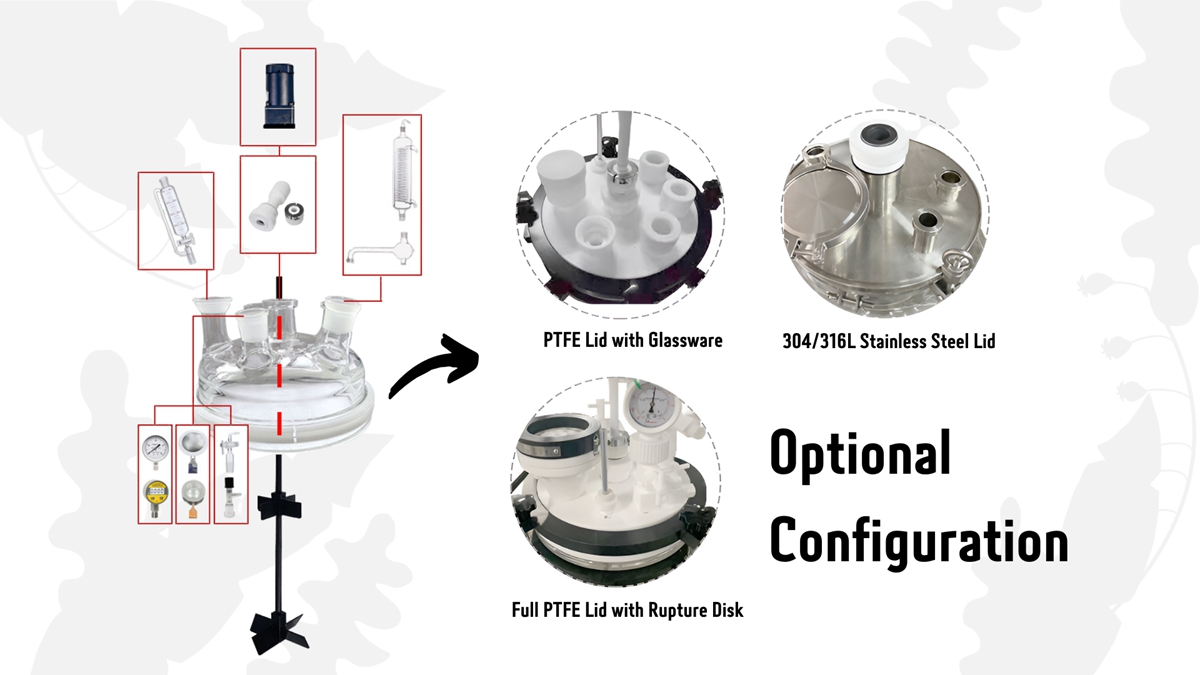

| Ports on Lid | 6 Ports: Stirring port, Air inlet port, Liquid dropping port, Thermowell port, Power feeding port and Spare port (Customized) | |||

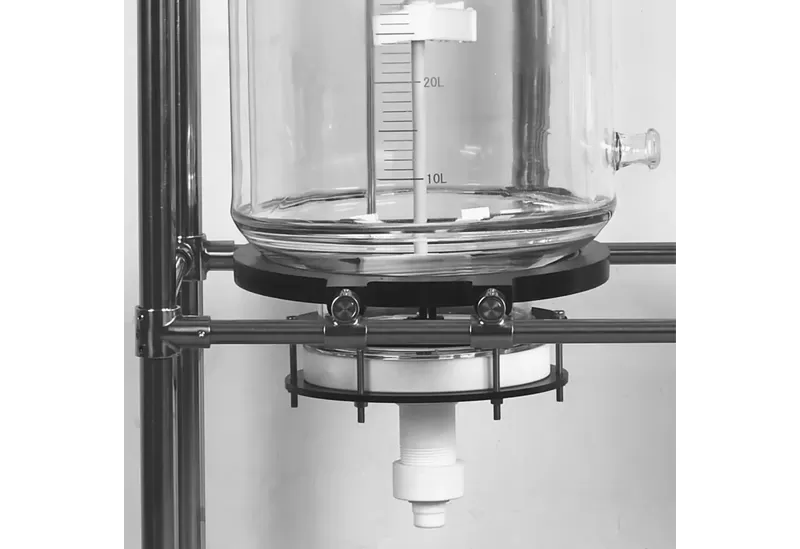

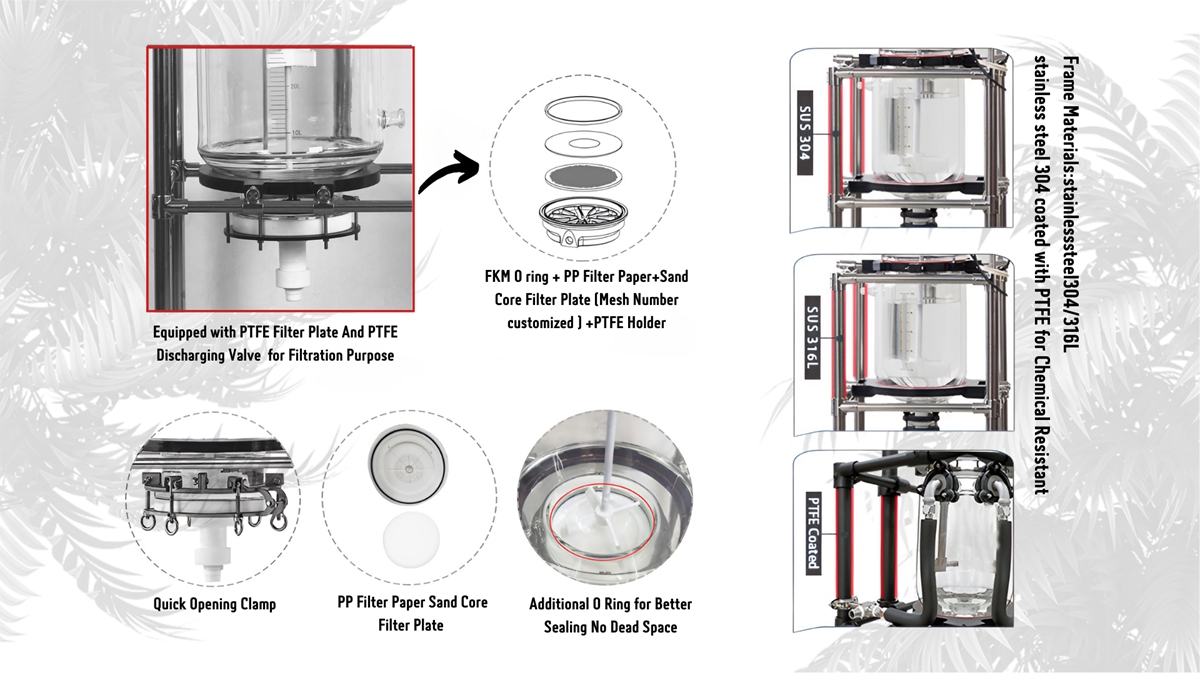

| Drain Valve | PTFE drain valve (zero dead end for throughly draining ) | |||
| Customized Available; Contact us for Contract Manuafcturing | ||||
