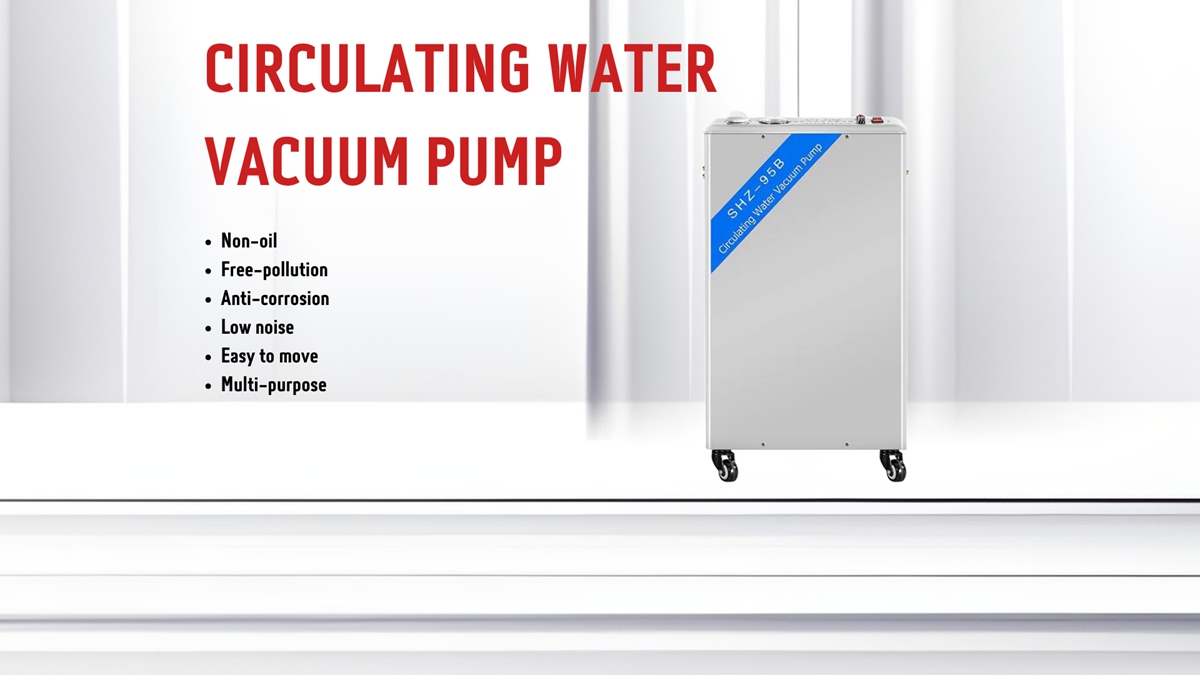

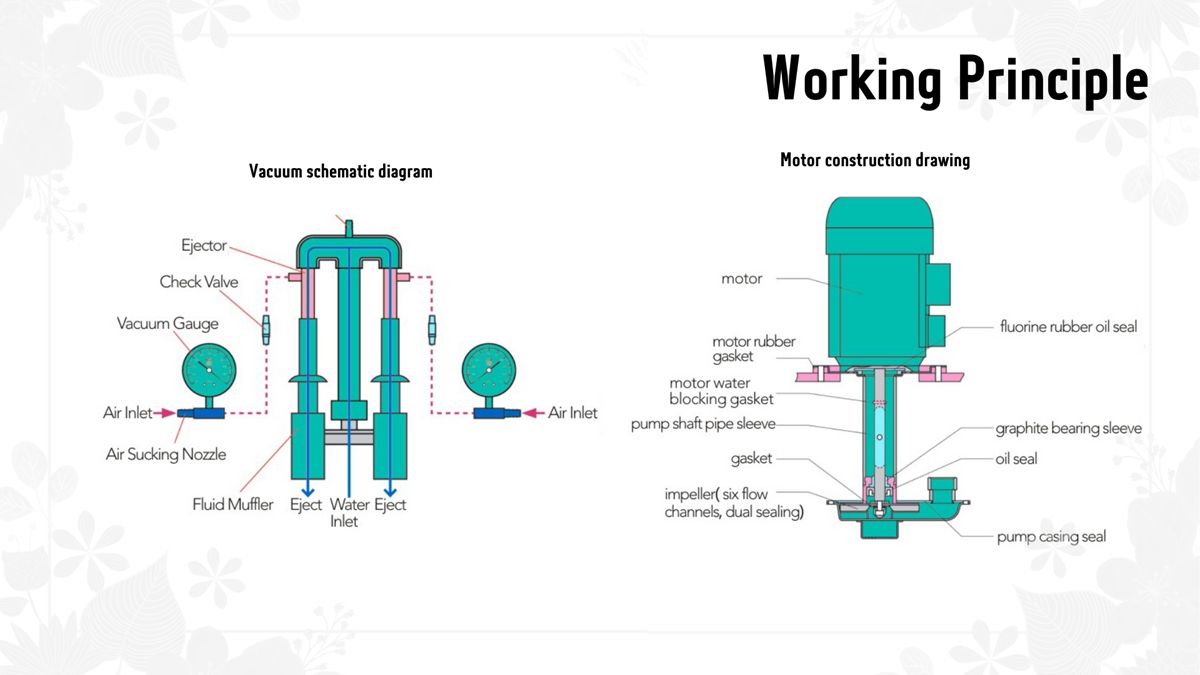

Circulating water vacuum pump use circulating water as working liquid, negative pressure produced by jet technology. It is not only a vacuum suction device, and also to provide cooling circulating water to the reactor. Widely used for evaporation, distillation, crystal filter, decompression sublimation and other operation, it is the ideal instrument in environmental protection, biochemistry, medical service, chemical and scientific research.
| Circulating water vacuum pump | |

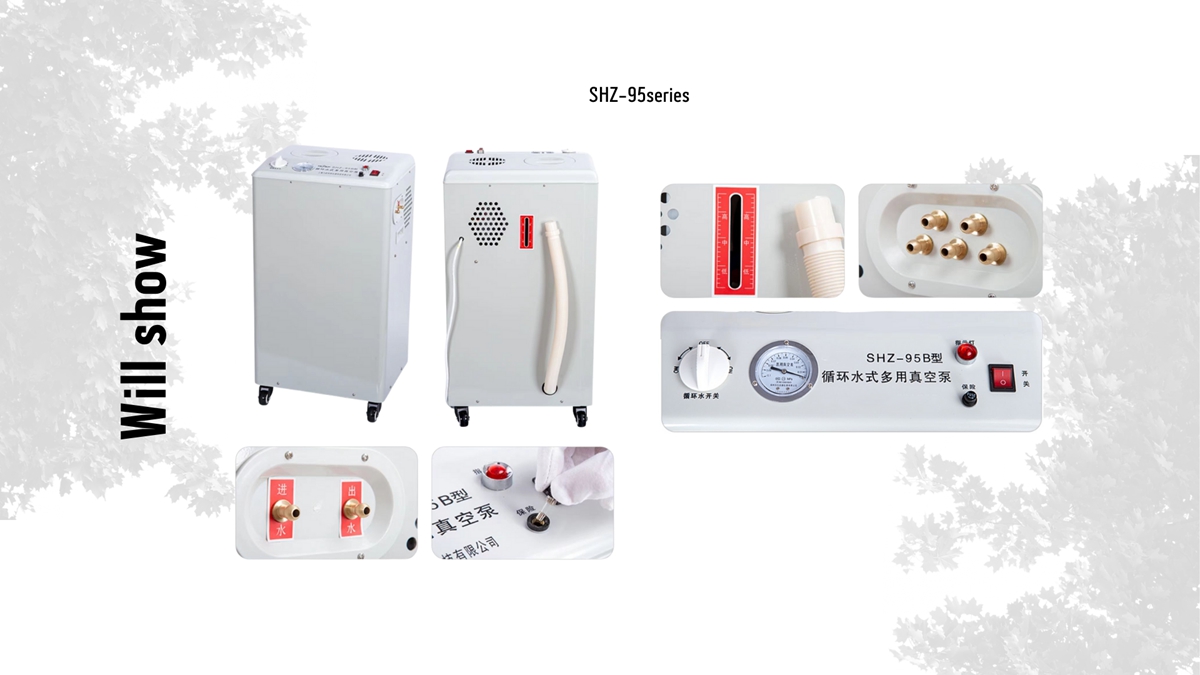

| Product Type | SHZ-95 |
| Flow Rate (L/min) | 80 |
| Lift (m) | 12 |
| Power (W) | 370 |
| Single end sucking rate (L/min) | 10 |
| Water storage tank volume(L) | 50 |
| Vacuum Degree (Mpa) | -0.098 |
| Voltage/Frequency (V/Hz) | 220/50 |

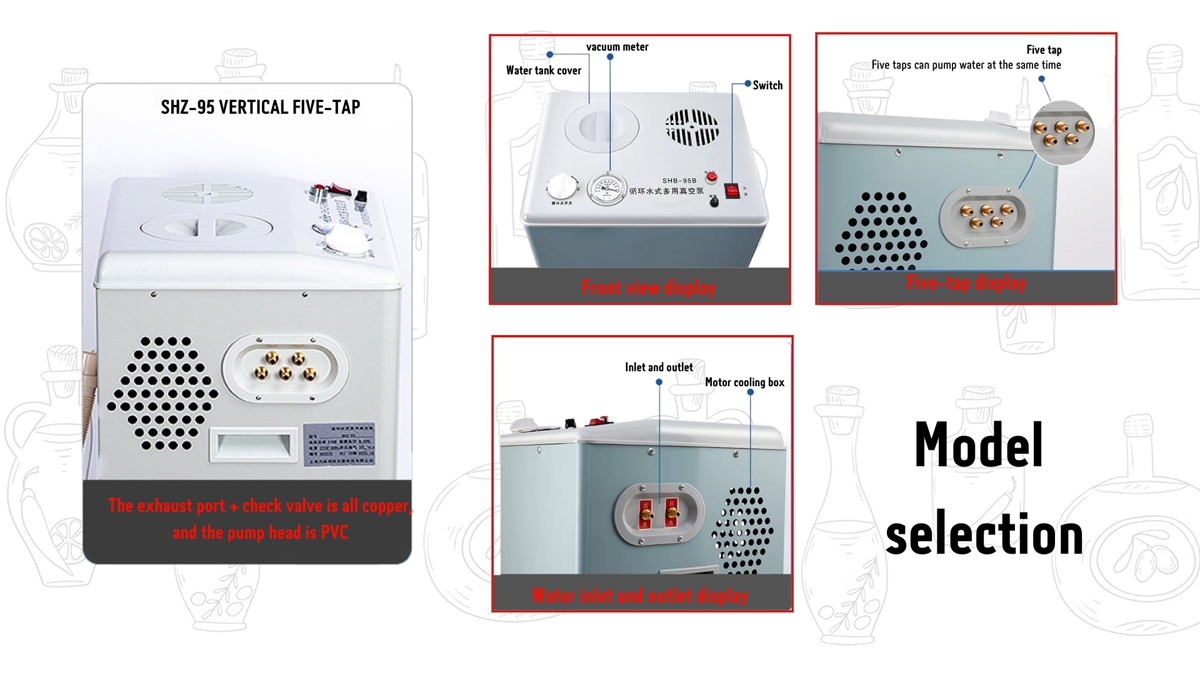

| Tap Number | Single meter five taps |
| Boundary Dimension (mm*mm*mm) | 450*340*840 |
| Body material | Anti-corrosion Type |
| Noise (dB) | <50 |
| Dead Weight (Kg) | 35 |
| Tap material | Copper |
| Check valve material | Copper |
| Pump head material | PVC |
| Circulating water function | N |
| Customized Available; Contact us for Contract Manuafcturing | |
