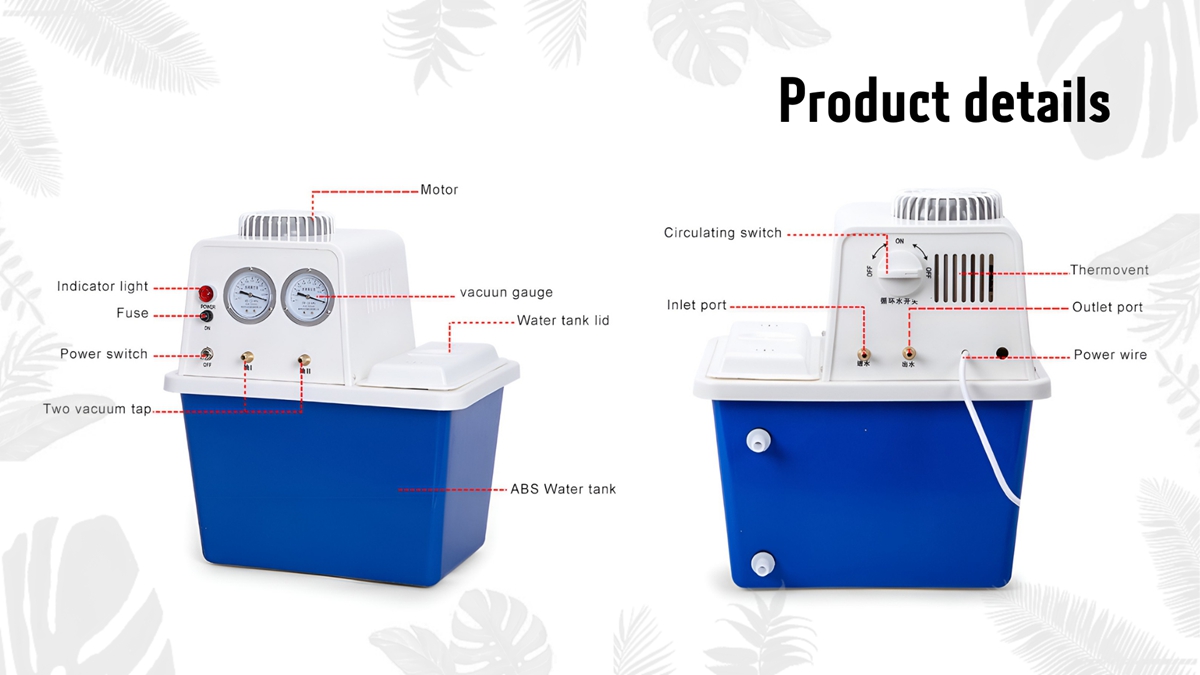

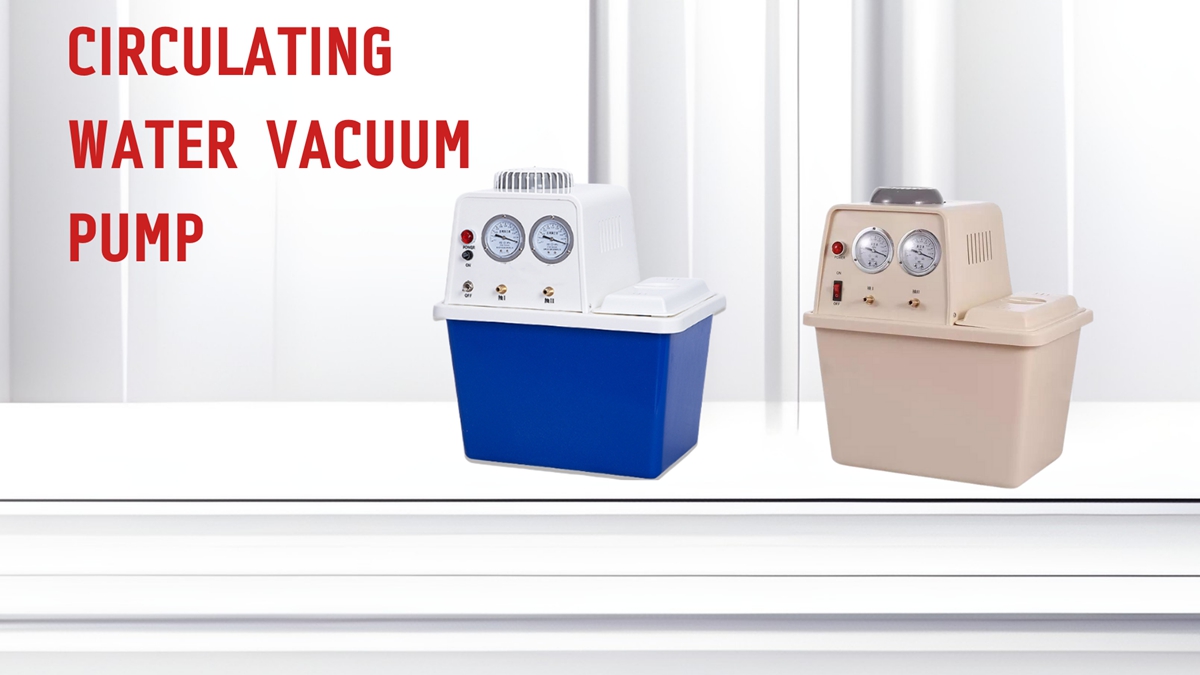

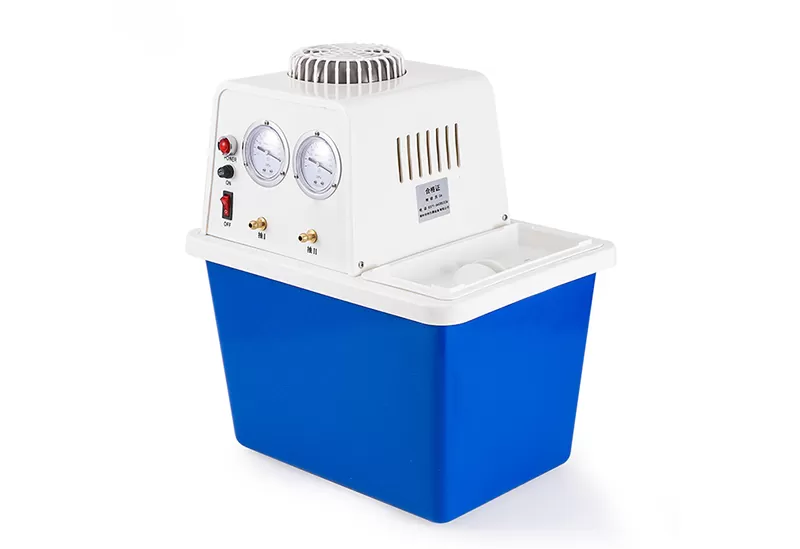

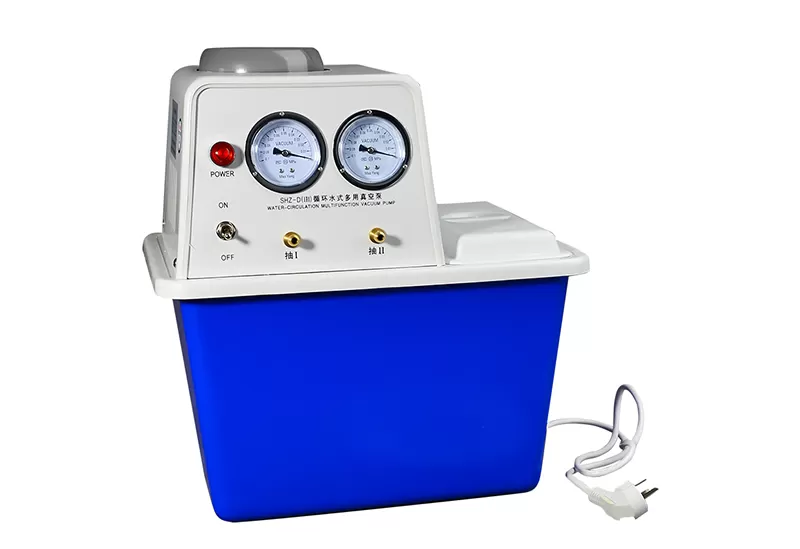

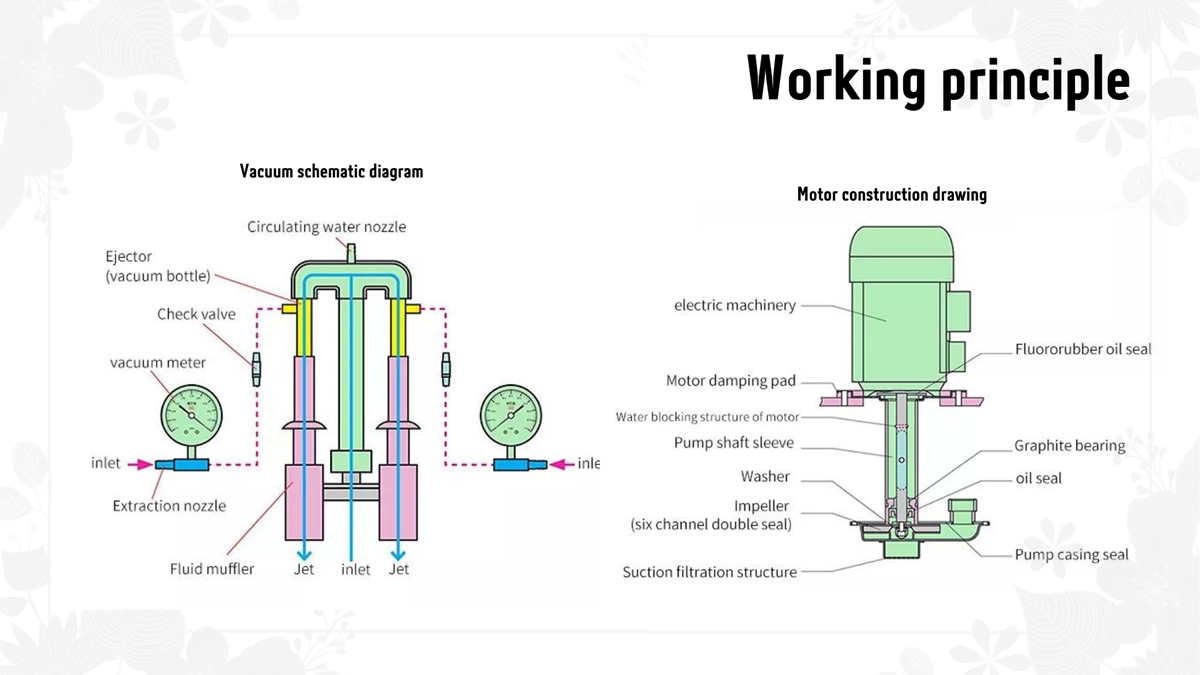

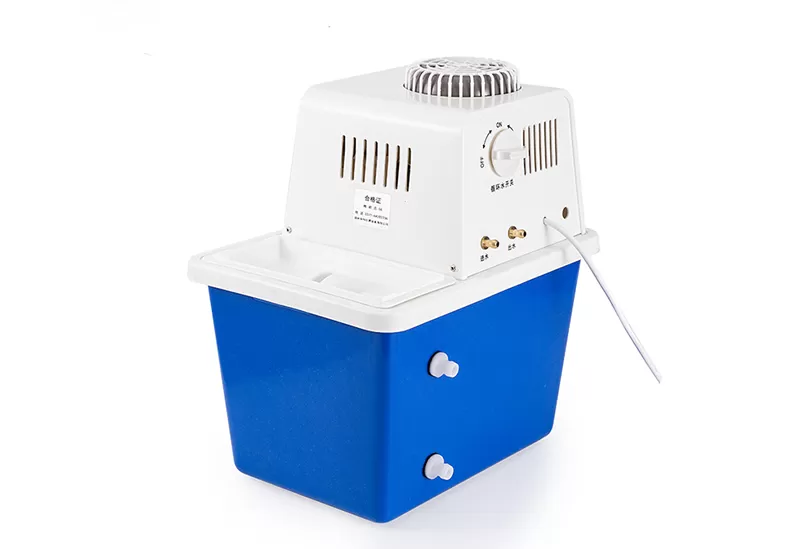

The circulating water vacuum pump is a laboratory vacuum generator which uses water jet to generate vacuum. This machine is used to provide vacuum condition for the process of evaporation,distillation, and so on, particularly be suitable for labs and small scale test of industries such as universities and colleges, scientific research institutes, chemical industry, pharmacy, biochemistry, foodstuff, pesticide, agricultural engineering, biological engineering.
| Circulating water vacuum pump | |||||

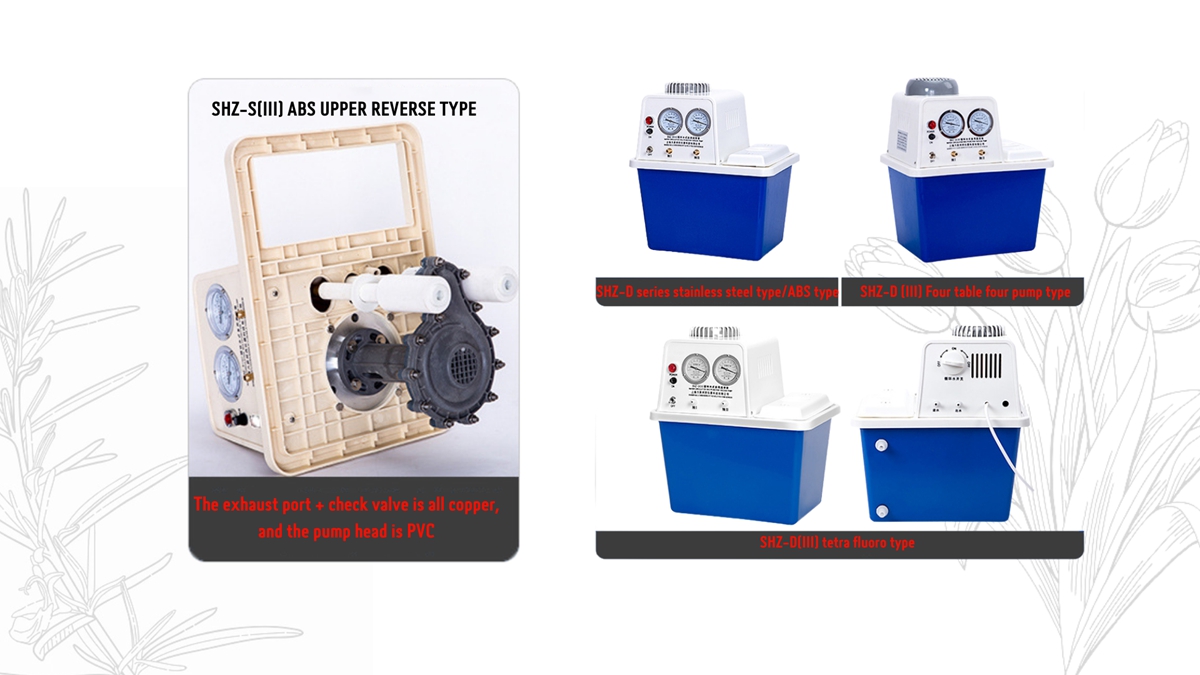

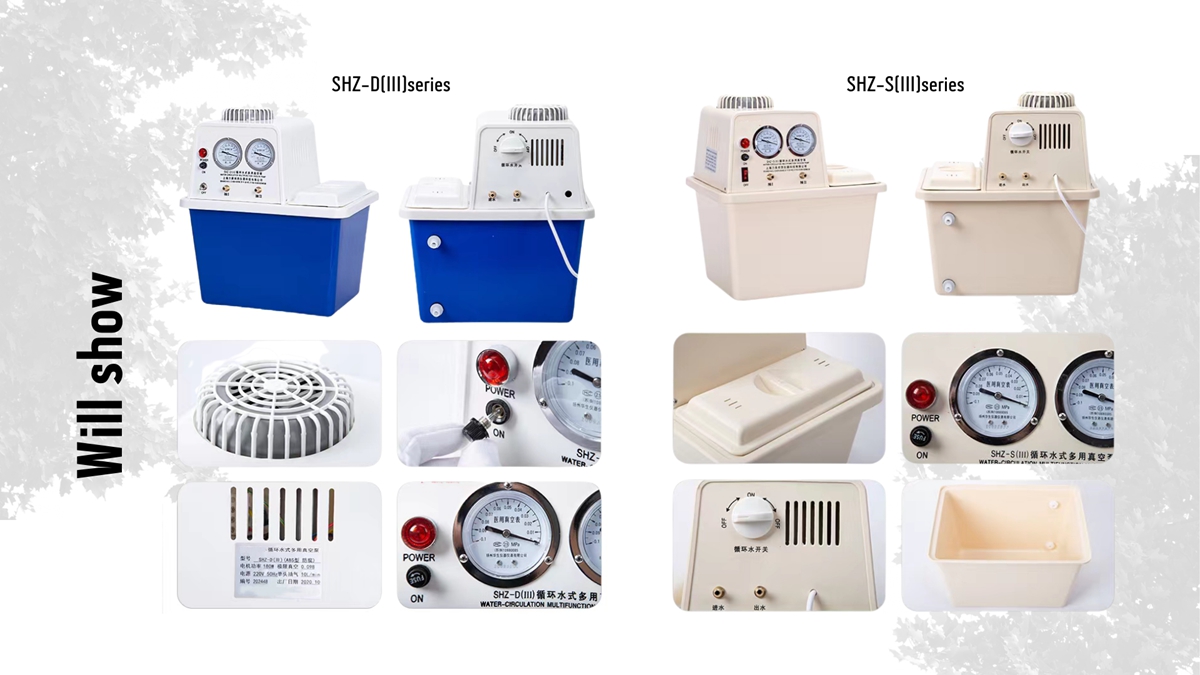

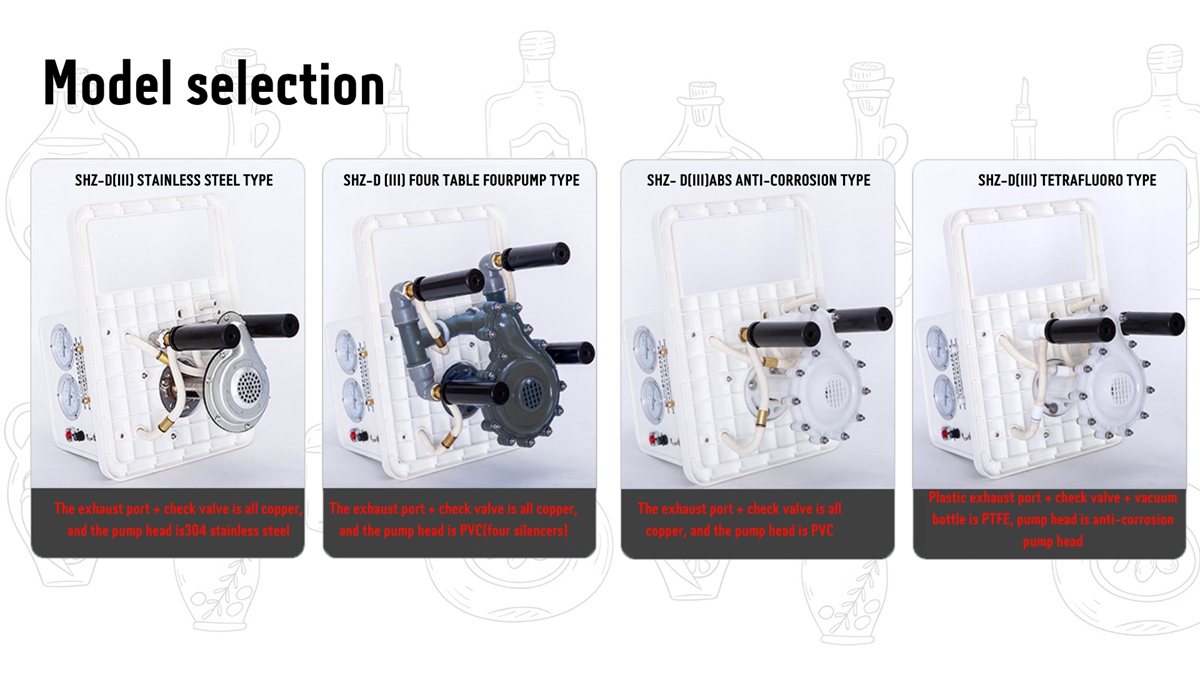

| Product number | SHZ -D(III)(ABS type anti-corrosion) | SHZ -D(III)(Tetrafluoro) | SHZ -D(III)(Stainless steel) | SHZ -D(III)(Four table four pump) | SHZ -S(III)(Reverse type on ABS) |
| Input power | AC 220V | ||||
| Frequency (Hz) | 50 | ||||
| Power (W) | 180 | 370 | 180 | ||

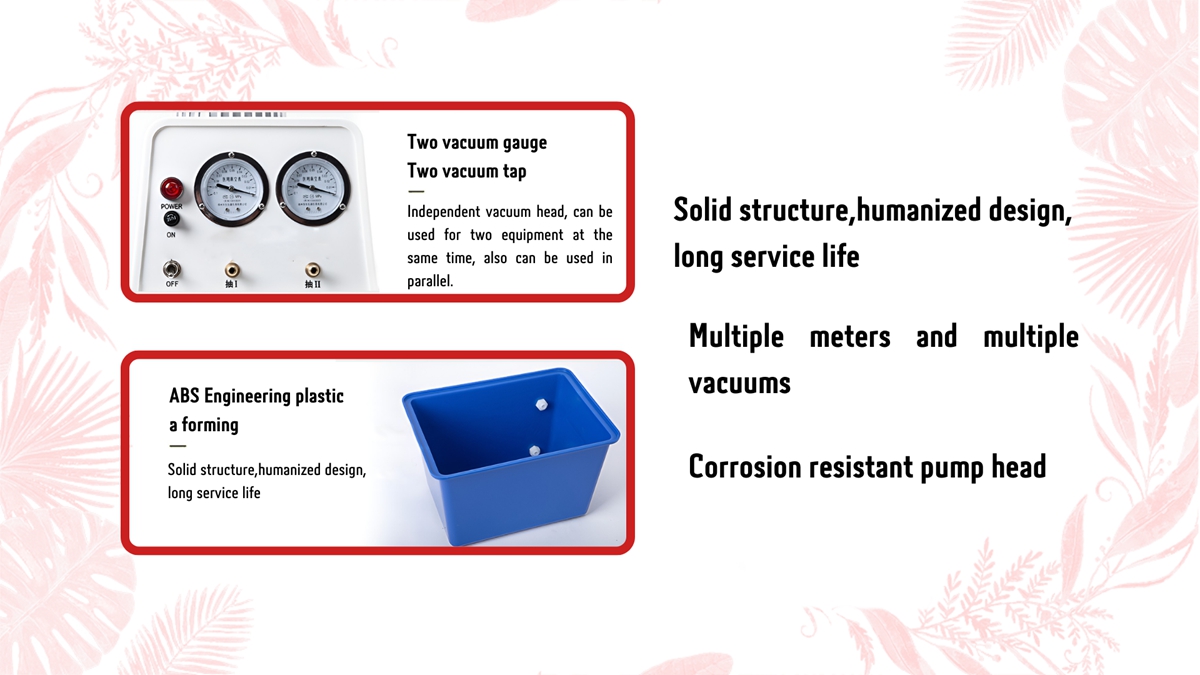

| Display method | Pressure gauge × 2 | Pressure gauge × 4 | Pressure gauge × 2 | ||
| Number of suction heads | 2 | 4 | 2 | ||
| Maximum vacuum degree (MPa) | 0.098 | ||||
| Single head pumping volume (L/min) | 10 | ||||
| Flow (L/min) | 60 | 60 | 60 | 60 | 90 |
| Head | 8m | 8m | 8m | 8m | 8m |
| Circulating water function | Y | Y | Y | N | Y |
| Tap material | Copper | Tetrafluoro | Copper | Copper | Copper |

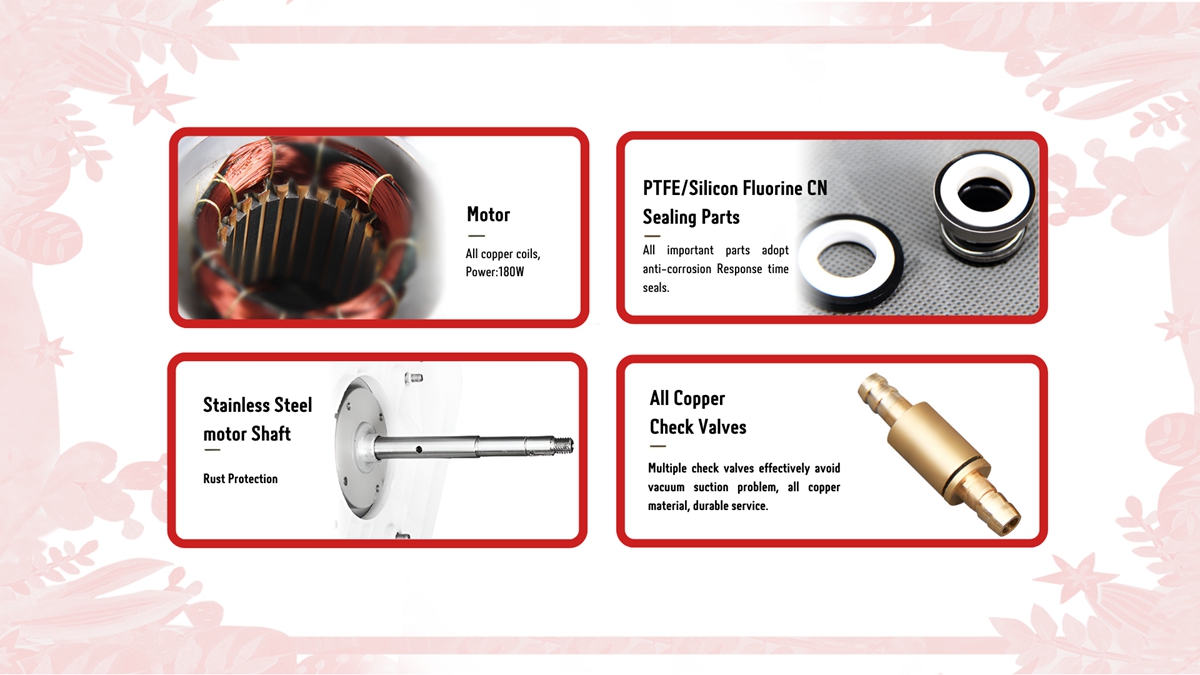

| Check valve material | Copper | Tetrafluoro | Copper | Copper | Copper |

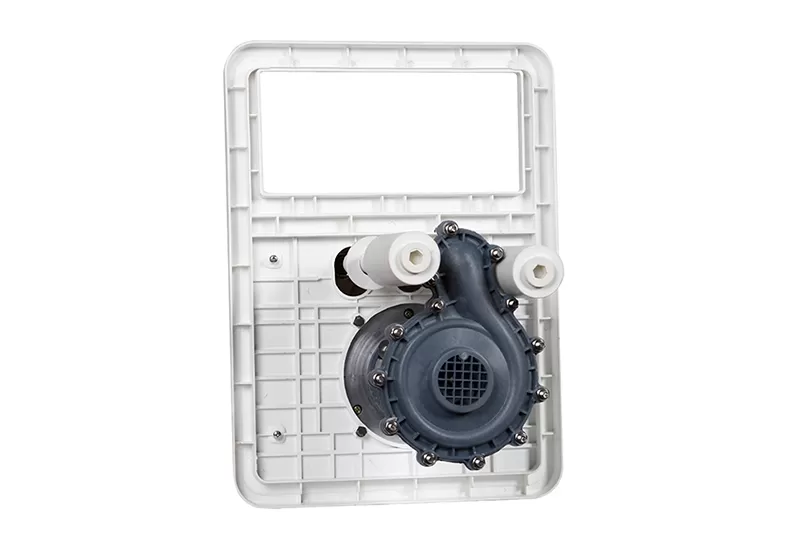

| Pump head material | PVC | PVC | 304 stainless steel | PVC | PVC |
| Tank volume (L) | 15 | 15 | 15 | 15 | 15 |
| Net weight (KG) | 9.5 | 9.5 | 10 | 13 | 10 |
| Product size (L×W×H mm) | 400×280×420 | 400×280×420 | 400×280×420 | 400×280×420 | 400×280×420 |
| Customized Available; Contact us for Contract Manuafcturing | |||||
