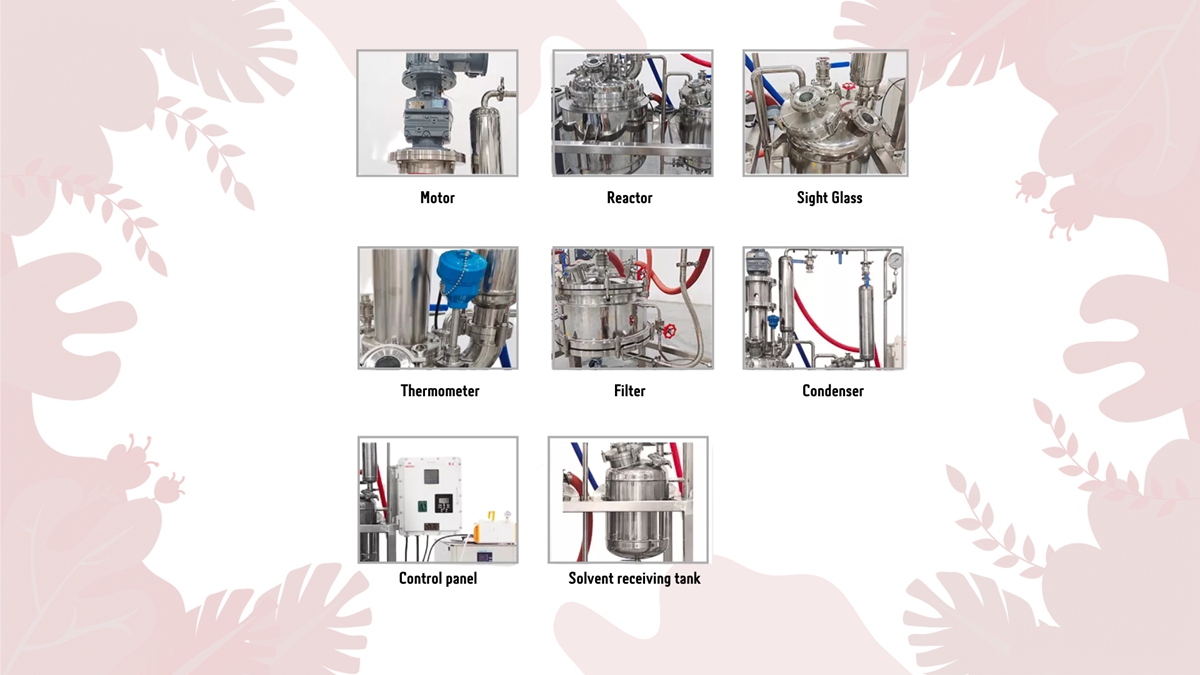

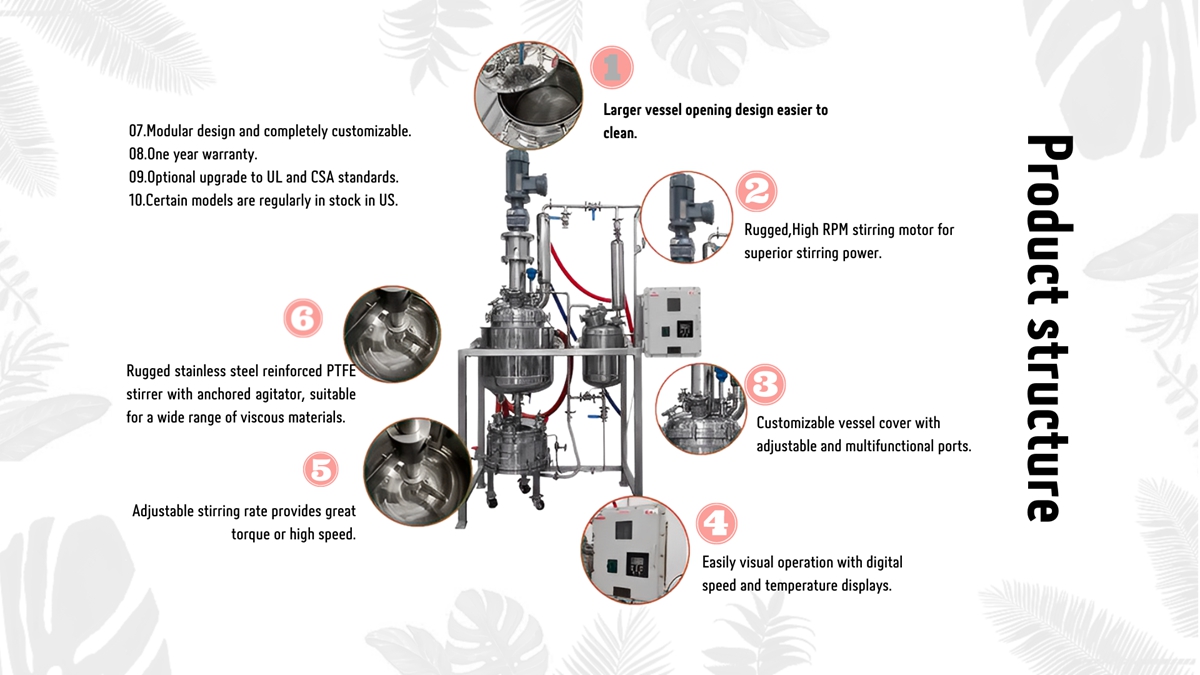

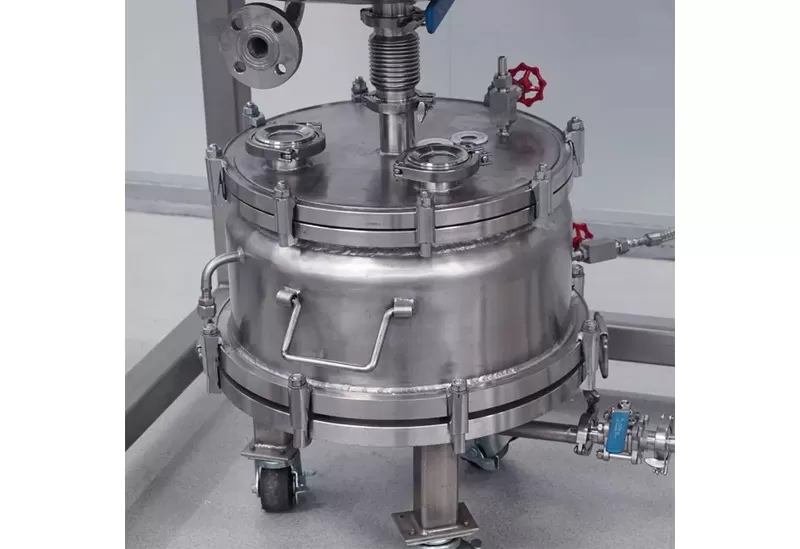

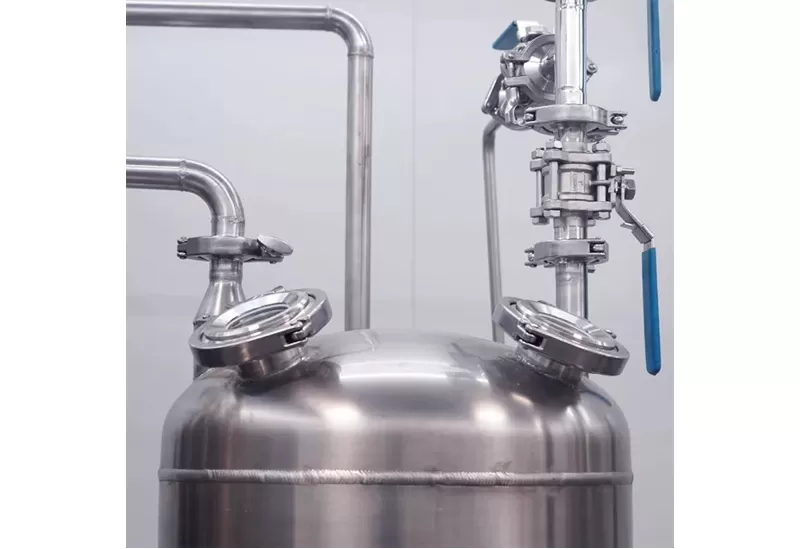

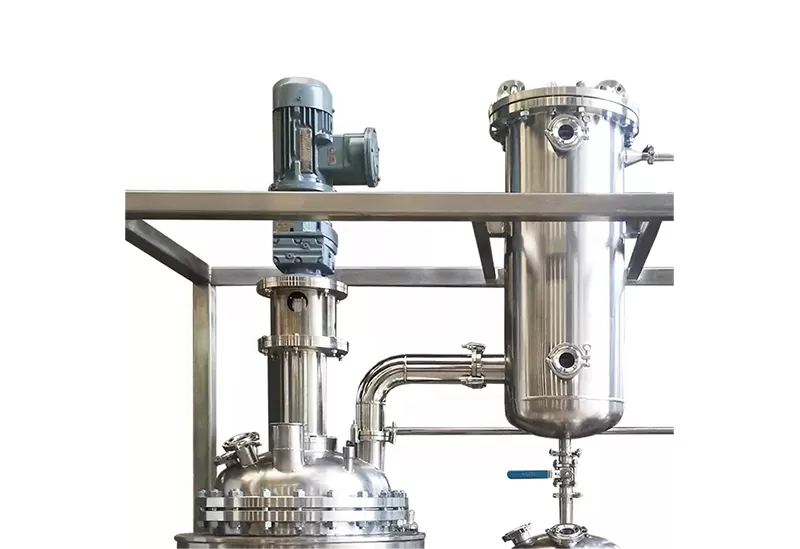

The stainless steel crystallization reactor is mainly composed of kettle body, stirring device, driving device, motor support, process nozzle, filter, mother liquor receiving tank, heating and refrigeration circulator and vacuum pump. The kettle body comprises an inner cylinder body and a jacket body. The stirring device is composed of a stirring blade and a stirring shaft. The driving mode is magnetic drive, magnetic seal has the advantages of clean, quiet, good seal and so on.
| Stainless steel crystallization reactor | ||||
| Model | SCR-50L | SCR-100L | SCR-200L | SCR-300L |
| Electrical Requirements | 110/220V.50/60Hz 1-PH | |||
| Standard Stirring Motor Power | 1 5Kw | |||
| Rotation Controller | Variable frequency drive, 80~350 rpm, flameproof | |||
| Jacket Pressure | -0.1~0.1Mpa | |||
| Inner vessel Pressure | Atm~0.3Mpa | |||
| Temperature Range | -60~200"C | |||

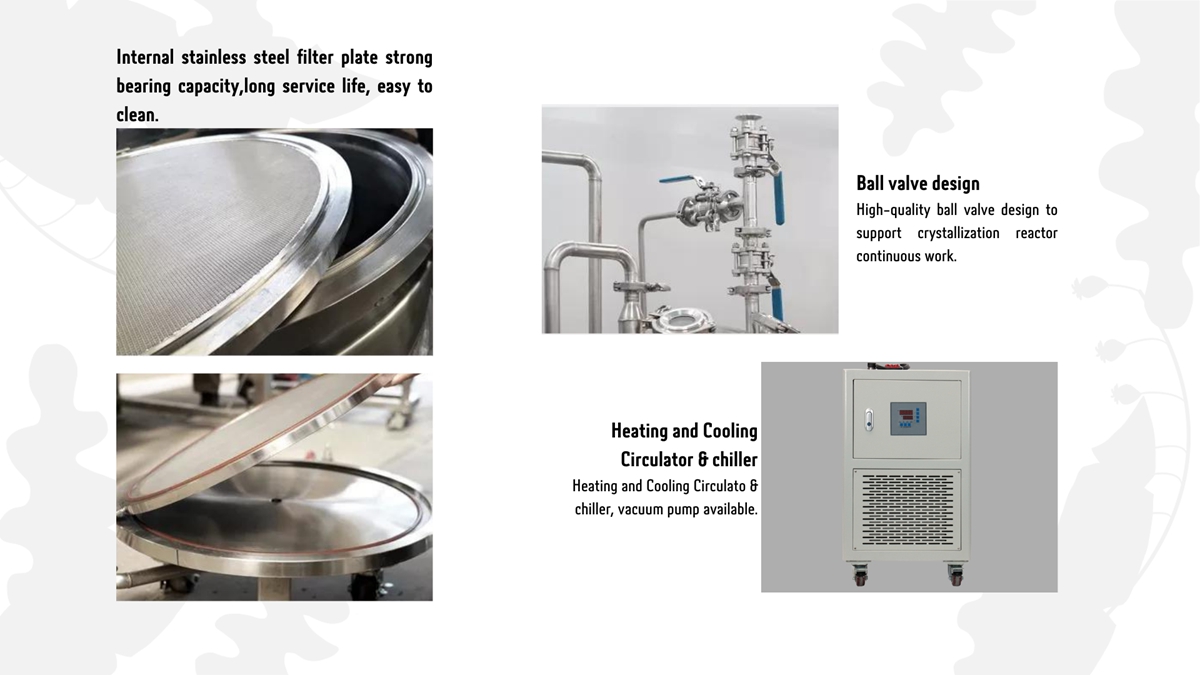

| Filter Plate Material | S30408, pore size100um | |||
| Filter Bag/Paper Material | Polypropylene, 200 mesh | |||
| Vacuum Sealing | PTFE to increase durability and longevity | |||
| Reaction Vessel Capacity | 50L | 100L | 200L | 300L |
| Jacket Capacity | 20L | 30L | 45L | 60L |
| Condensation Area | 0.3m | 0.6m | 0.8m | 0.8mi |
| Liquid Collection Vessel | 30L | 80L | 150L | 200L |
| Filter Dimension (W*D*H) | Ф400*200(25L) | Ф500x200(40L) | Ф600*220(60L) | Ф600*300(80L) |
| Installation Dimension (W*D*H) | 1 500*730*2700 | 1750*860*2800 | 2100* 1020*2900 | 2500*1250*3250 |
| Customized Available; Contact us for Contract Manuafcturing | ||||
