Molecular Distillation system can separate liquid-liquid mixture under temperature that is far lower than boiling point by the difference of mean free path of molecules under high vacuum condition. Such separation is difficult or unable to achieve on normal distillation equipment. Molecular Distillation is especially suitable to separate substances of high boiling point, heat sensitive and easy to be oxidized.Mainly used in chemical, pharmaceutical, petrochemical, perfume, plastic and oil industries.

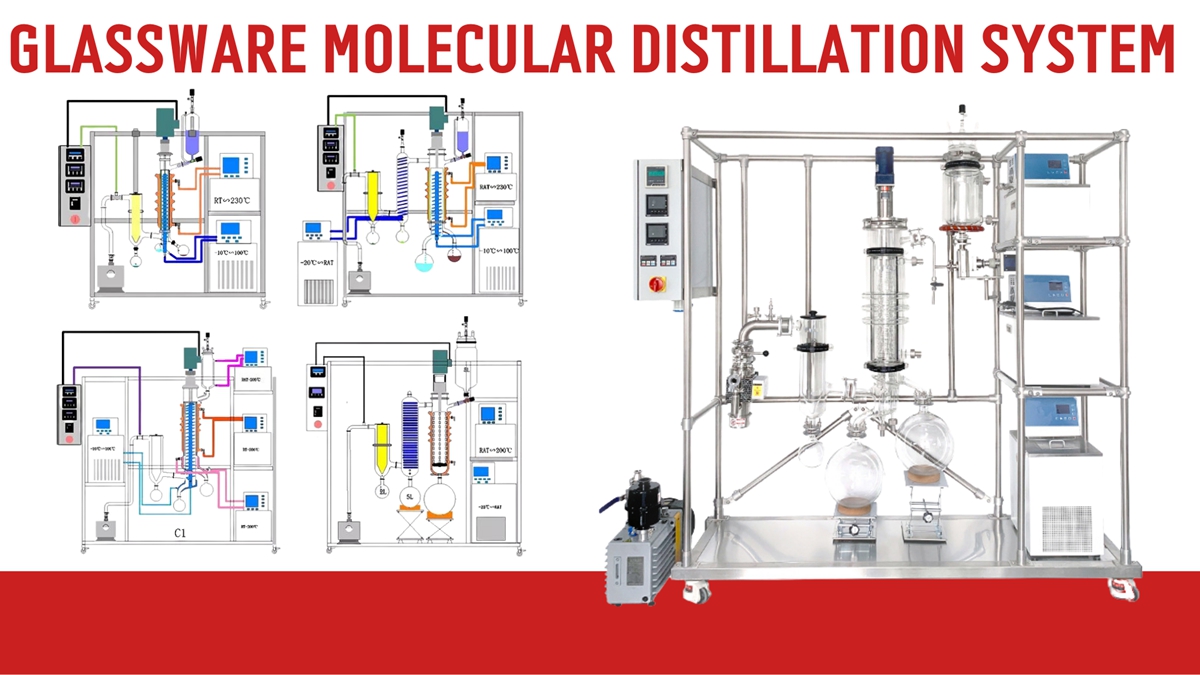

| Glassware Molecular Distillation System | |||
| Model (L/h) | GMD-100 | GMD-150 | GMD-200 |
| Feeding speed | 0.75~7.5 | 1.25~12.5 | 1.75~17.5 |
| Herb throughput (L/h) | 1.5~3 | 2.5~5 | 3.5~7 |
| Evaporation area (㎡) | 0.1 | 0.25 | 0.35 |
| System vacuum (Pa) | ≤0.1Pa(No Load) | ||
| Agitate Motor speed(rpm) | ≤400 | ||
| Material(wet part) | High borosilicate glass, PTFE, SUS316L | ||
| Seal Gasket standard | Food grade fluororubber(options: PTFE) | ||
| Certification | CE(option: UL, ATEX...) | ||
| Wiper type | Centrifugal scraper(PTFE) | ||
| Agitator drive | Magnetically coupled drive | ||
| External condenser | —— | ||
| External cold trap | √ | ||
| Feeding tank(L) | 2 | 3 | 5 |
| Feeding pump | Peristaltic pump (options: gear pump) | ||
| Heat preservation | Feed and Discharge: Heating tape +PT100 | ||
| Holding temperature(℃) | RT~100℃ | ||

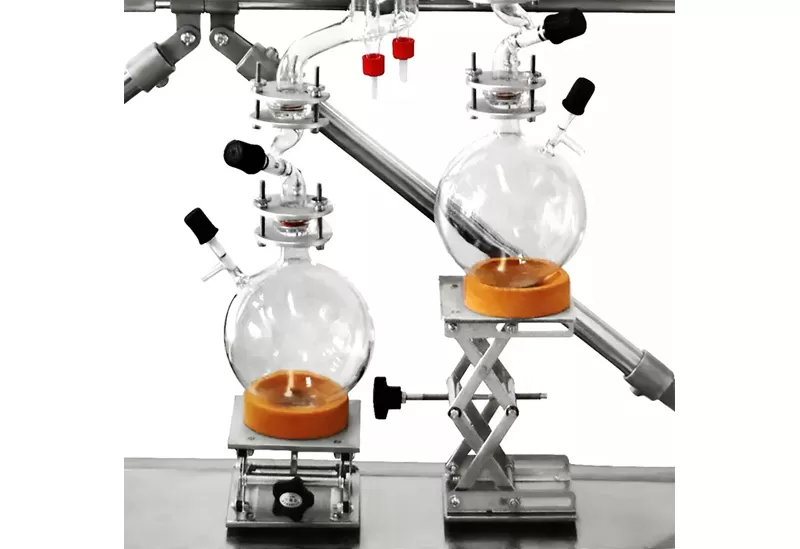

| Receiving flask | 1L、2L | 3L、5L | 3L、5L |
| Vacuum pump | Air cooled diffusion pump，80L/s | ||
| Electrical equipments | 220,1P(customized) | ||
| Model(L/h) | GMD-100A | GMD-150A | GMD-200A |
| Installation dimension(mm) | 1500*628*1750 | 1730*628*2000 | 1980*628*2050 |
| Package dimension(mm) | 1900*720*2100 | 1980*720*2140 | 2040*710*2160 |
| Package weight(Kg) | 300 | 340 | 360 |
| Model(L/h) | GMD-100C | GMD-150C | GMD-200C |
| Installation dimension(mm) | 1600*628*1750 | 1950*628*2000 | 1980*628*2050 |
| Package dimension(mm) | 2150*750*1960 | 2450*760*2200 | 2250*760*2200 |
| Package weight(Kg) | 310 | 410 | 450 |
| *1. Due to different material properties, the throughput will fluctuate, please subject to test results; *2. Diffusion pump can only be used as a second stage vacuum pump with a first-stage pump. | |||
| Customized Available; Contact us for Contract Manuafcturing | |||
