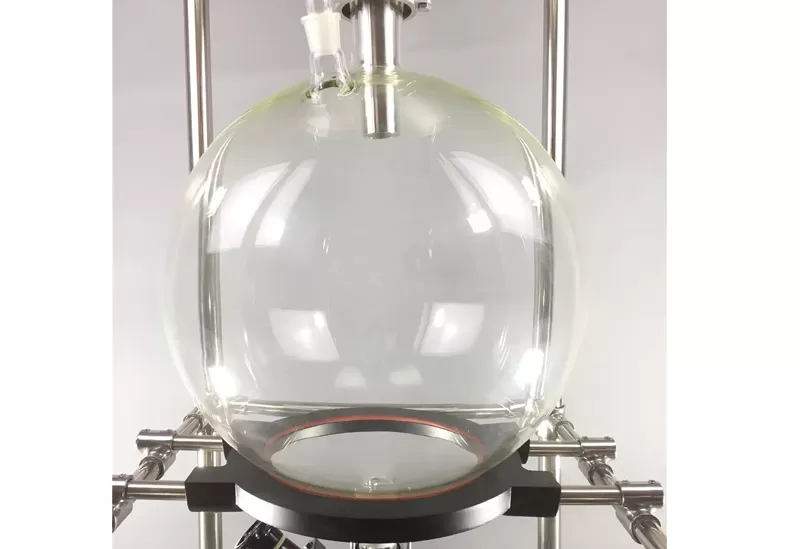

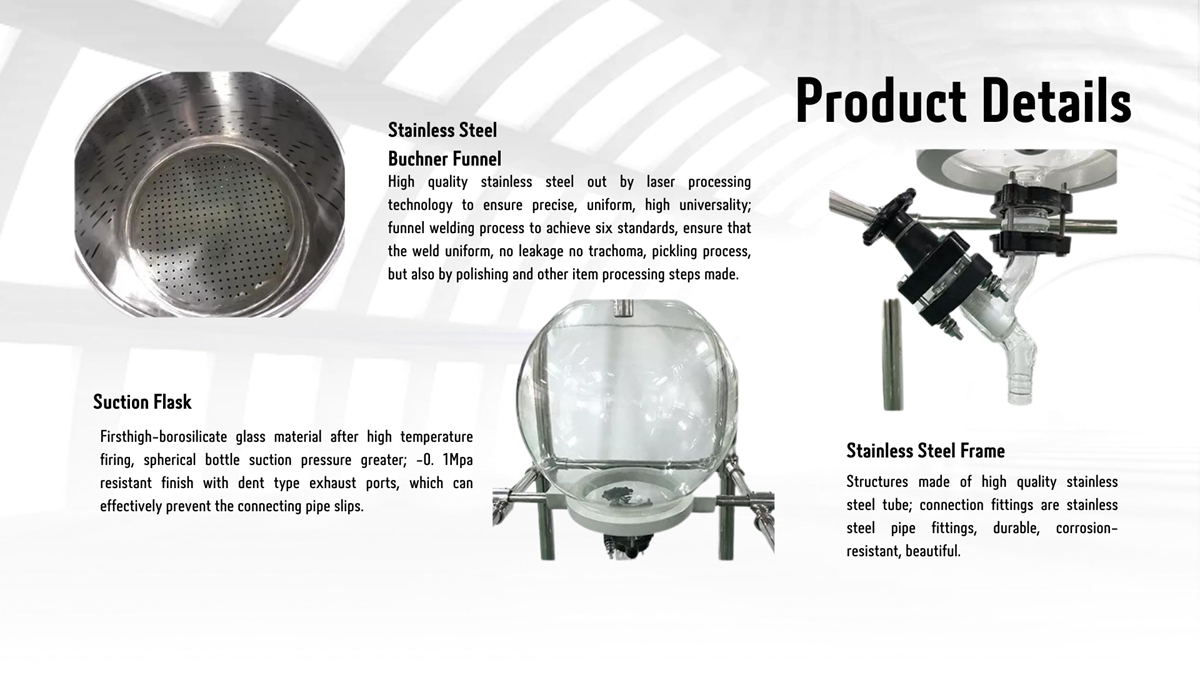

VF series vacuum buchner filter is a special laboratory filter, it matched with the micro-porous membrane of different aperture,adopts vacuum suction filter, can be used in the research of chemical analysis, instrumental analysis, sanitary inspection, pharmaceutical industry, and agricultural machinery, automotive, construction machinery and so on for liquid - liquid Extraction or liquid - solid filtration.
| Vacuum filter | ||||
| Model | VF-10 | VF-20 | VF-30 | VF-50 |
| Glass material | Borosilicate glass 3.3 | |||
| Frame material | Stainless steel | |||
| Pipe material | Stainless steel 304 | |||
| Collection bottle volume | 10L | 20L | 30L | 50L |
| Funnel size (mm*mm) | 350*220 | 350*220 | 450*250 | 450*250 |
| Funnel material | 450*250 | |||
| Distance between dumping opening and ground (mm) | 450 | |||
| Filter opening | φ80flange opening | |||
| Air exhaust device | 24#standard bucket valve | |||
| Exterior size(mm*mm*mm) | 490*490*1500 | 490*490*1600 | 490*490*1650 | 490*490*1750 |
| Packing size(mm*mm*mm) | 1600*540*540 | 1650*540*540 | 1700*540*540 | 1800*540*540 |

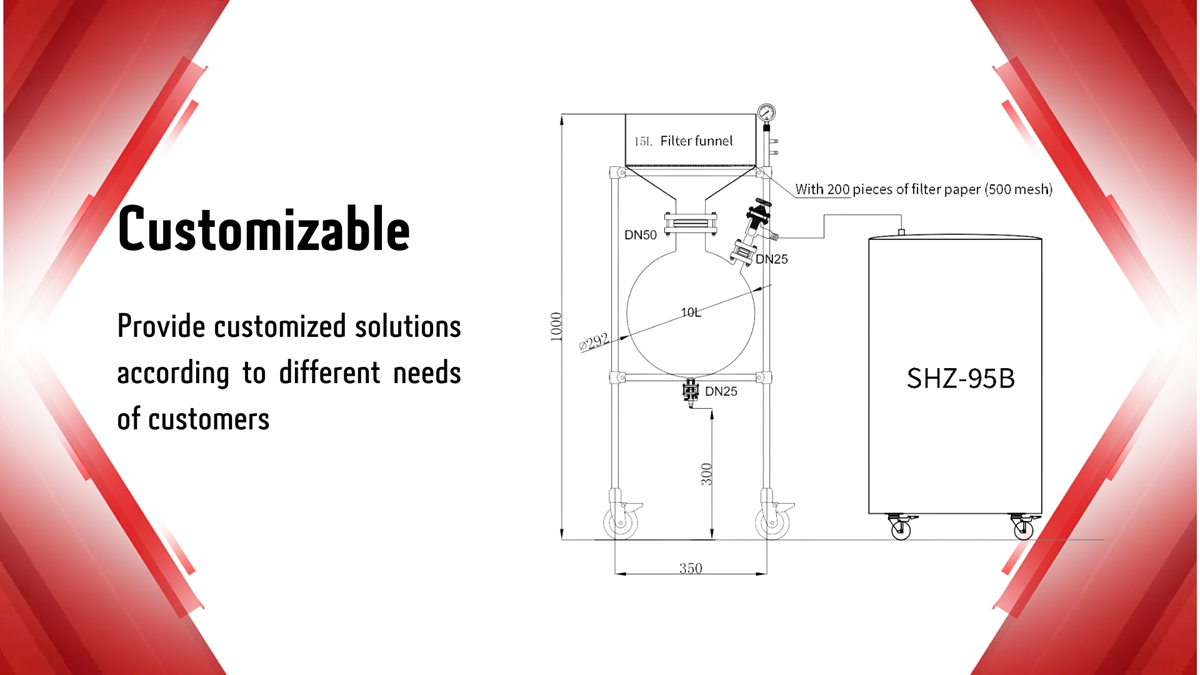

| Customized Available; Contact us for Contract Manuafcturing | ||||
