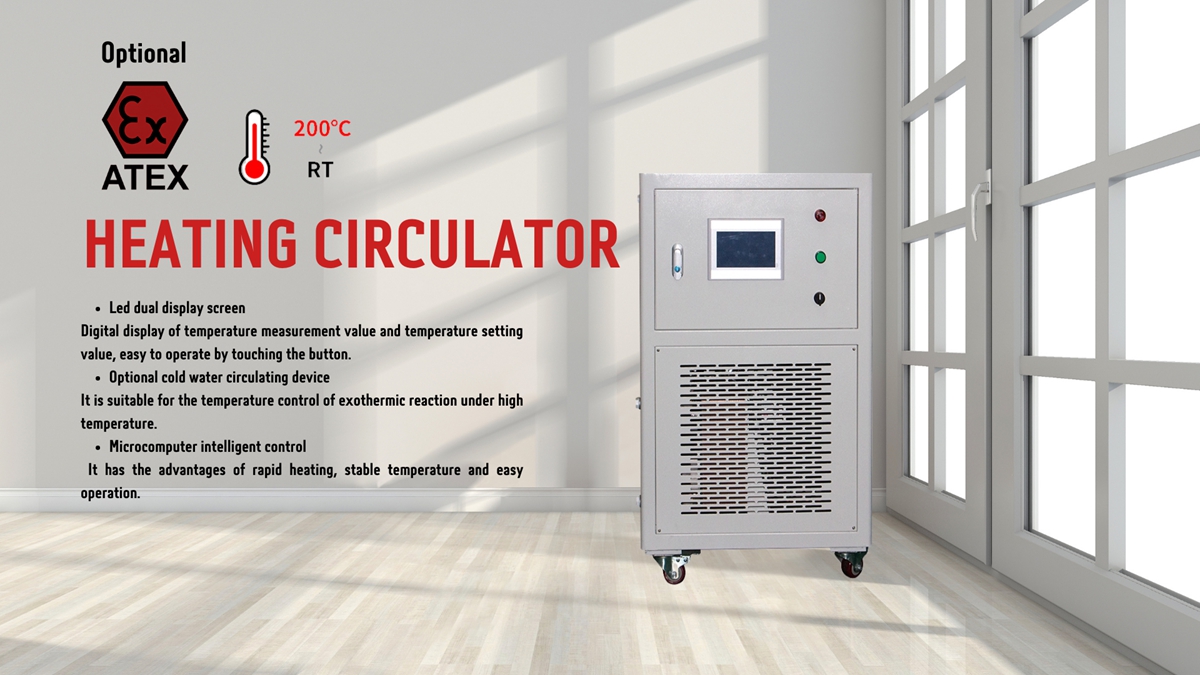

This heating circulator with constant temperature and current and flexible and adjustable temperature range is applicable to jacketed glass reactor for high temperature and heating reaction. It is essential corollary equippment in lab of pharmacy, chemical, food, macro-mo-lecular, new materials etc.
| Heating Circulator (sealed type) | ||||||
| Product Model | SC-05 | SC-10/20/30 | SC-50 | SC-80/100 | SC-150 | SC-200 |
| Temperature Range(℃) | RT~200 | RT~200 | RT~200 | RT~200 | RT~200 | RT~200 |
| Control Precision(℃) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Volume within controlled temperature | 2 | 5.5 | 5.5 | 5.5 | 8 | 8 |
| Power(K) | 2 | 5 | 5 | 7.5 | 9 | 12 |
| Pump Flow(L/min) | 40 | 40 | 40 | 40 | 56 | 56 |
| Lift(m) | 28 | 28 | 28 | 28 | 38 | 38 |
| Dimension(mm) | 510X300X600 | 590X420X700 | 590X420X700 | 550X650X900 | 550X650X900 | 550X650X900 |
| Supporting Volume(L) | 5 | 10/20/30 | 50 | 80/100 | 150 | 200 |
| Customized Available; Contact us for Contract Manuafcturing | ||||||
