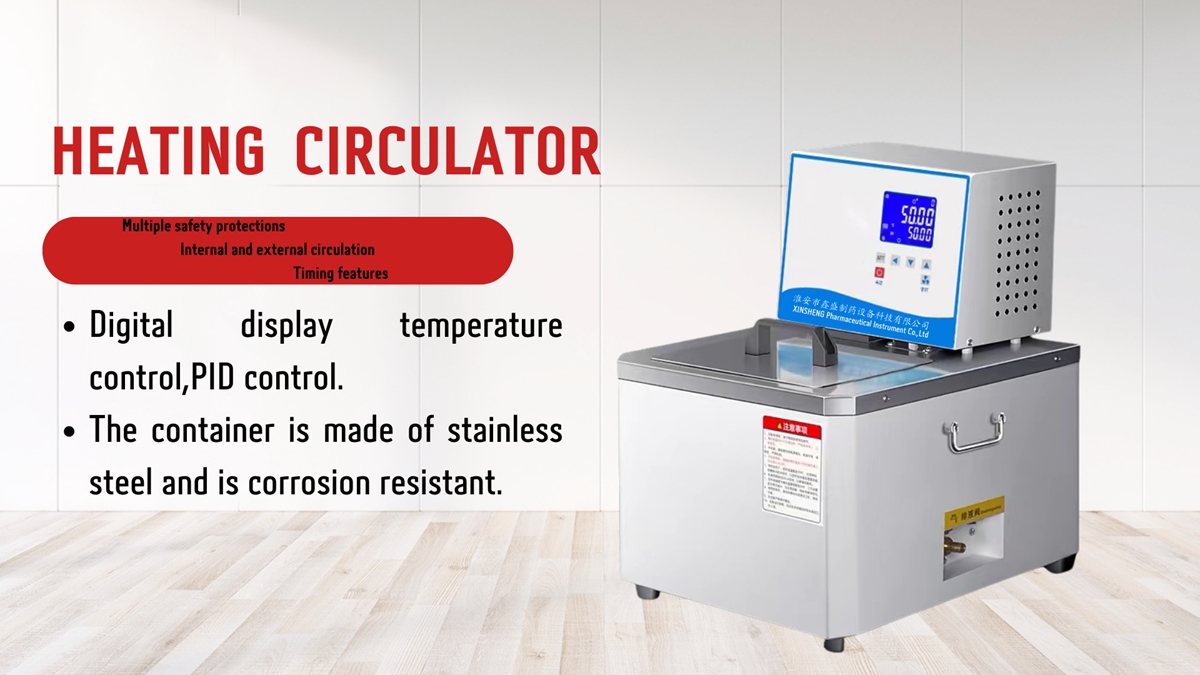

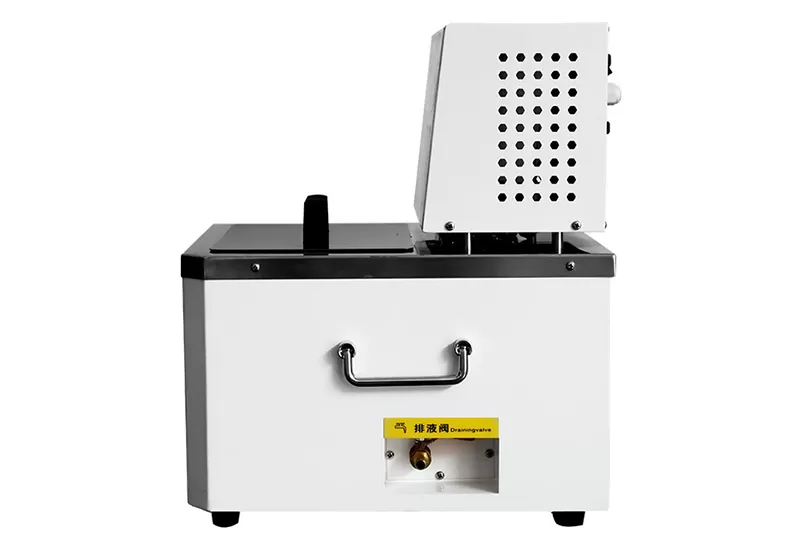

Heating Circulator (non-sealed type)

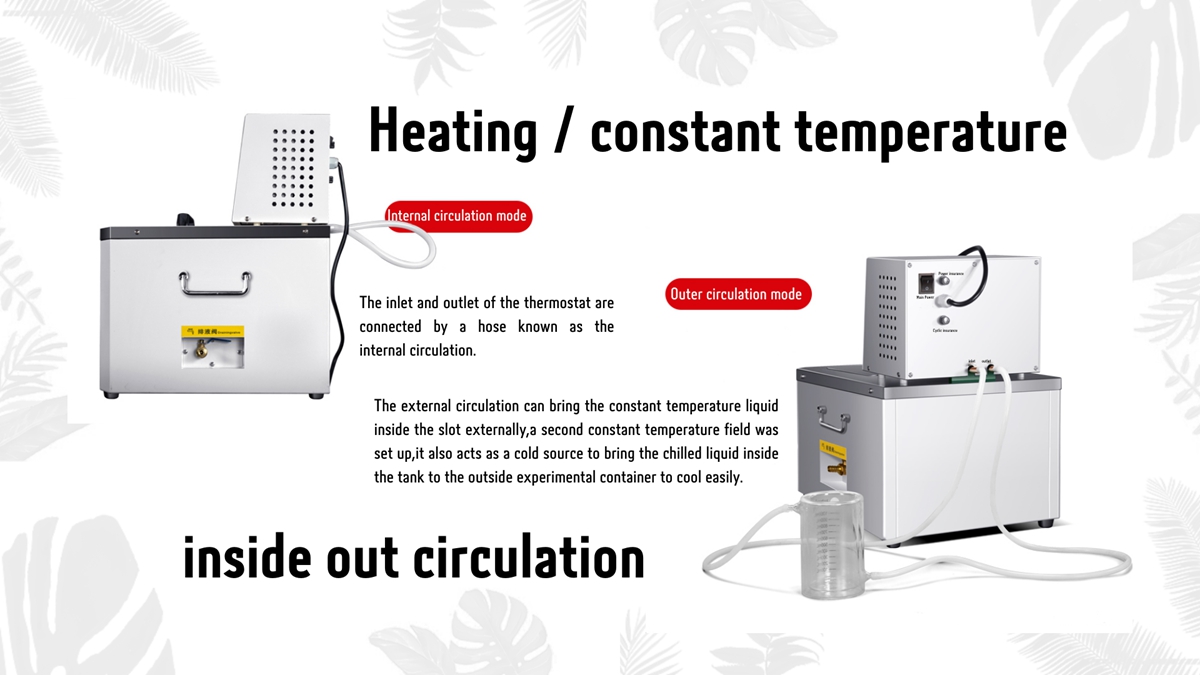

Heating circulator is widely used in research departments such as petroleum, chemical industry, electronic instruments, physics, chemistry, bioengineering, medicine and health, life science, light industry and food property testing and chemical analysis, universities, enterprises and production departments. The high-temperature circulator is suitable for supporting laboratory equipment such as glass reactor fermentation tank, chemical reactor and biopharmaceutical reactor under high temperature.

Introduction
Specifications

Heating Circulator
Model	Temp Range(℃)	Power(KW)	Temp fluctuation(±℃)	Tank volume(L)	Working size(mm)	Depth(mm)	Flow(L/min)	Dimensions(mm)LWH
GX-6	RT~100	1.0	0.03	7.5	180*160	150	6	370380440
GX-6A	RT~200	1.2	0.1	7.5	180*160	150	Inner loop	370380440
GX-1O	RT~100	1.4	0.03	10	180*160	200	6	370380490
GX-1DA	RT~200	1.5	0.1	10	180*160	200	Inner loop	370380490
GX-15	RT~100	1.8	0.03	15	250*160	200	6	370380490
GX-I5A	RT~200	2.0	0.1	15	250*160	200	Inner loop	370380490
GX-15B	RT~200	2.2	0.1	15	250*160	200	Inner loop	550380475
GX-20	RT~100	1.4	0.05	20	330*280	150	6	480520550
GX-20A	RT~200	1.6	0.1	20	330*280	150	Inner loop	480520550
GX-25	RT~100	2.0	0.05	25	250*160	300	6	370380620
GX-25A	RT~200	2.2	0.1	25	250*160	300	Inner loop	370380620
GX-30	RT~100	2.1	0.05	30	330*280	230	13	480520550
GX-3DA	RT~200	2.3	0.1	30	330*280	230	Inner loop	480520550
GX-40	RT~100	2.5	0.05	40	400*380	200	13	550630520
GX-4DA	RT~200	2.7	0.1	40	400*380	200	Inner loop	550630520
GX-50	RT~100	3.0	0.05	50	350*320	300	13	480610620
GX-5DA	RT~200	3.2	0.1	50	350*320	300	Inner loop	480610620
GX-70	RT~100	3.4	0.05	70	600*300	300	13	430750650
GX-70A	RT~200	3.5	0.1	70	600*300	300	Inner loop	430750650
GX-90	RT~100	4.5	0.05	90	800*300	300	13	4301050650
GX-9DA	RT~200	4.8	0.1	90	800*300	300	Inner loop	4301050650
Customized Available; Contact us for Contract Manuafcturing
