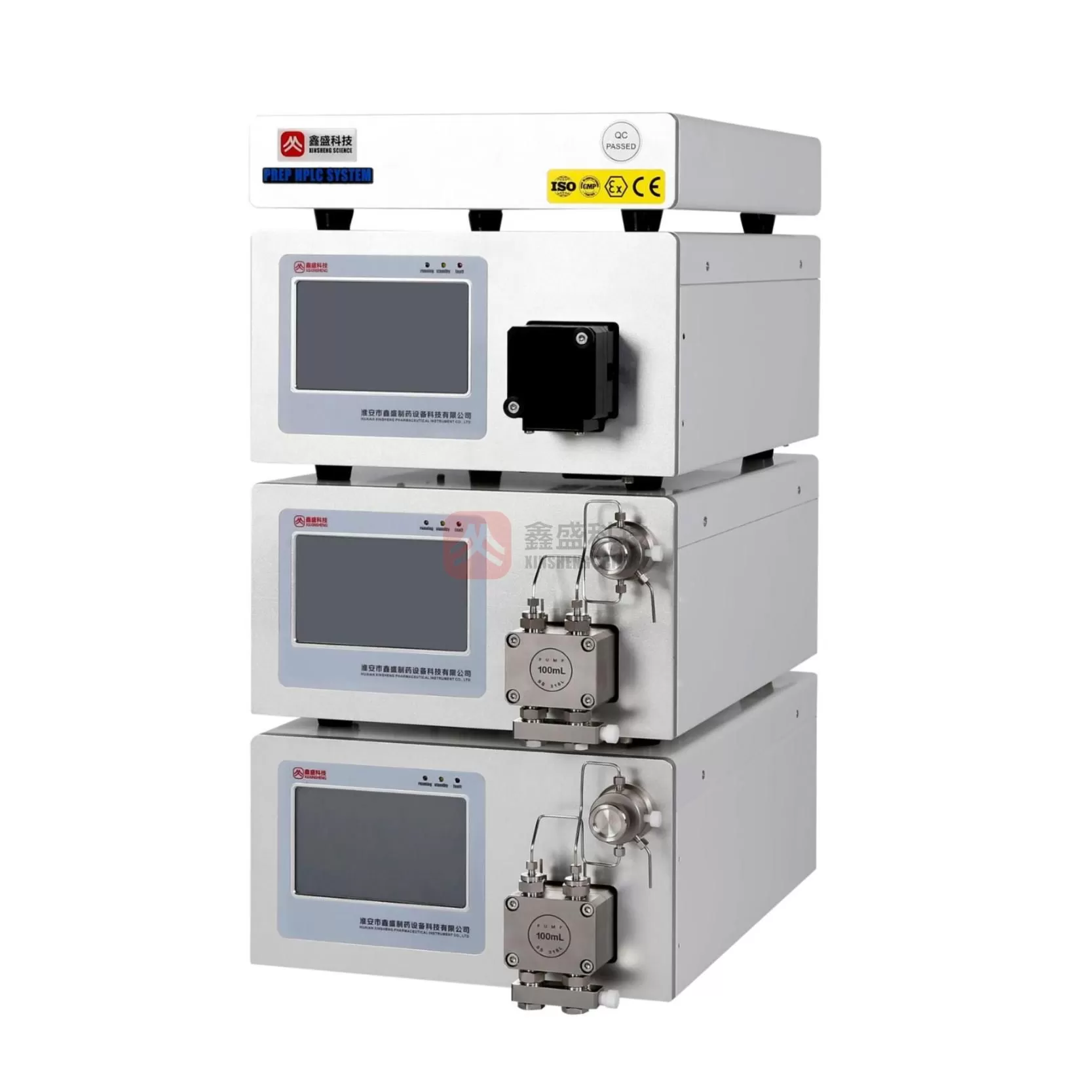

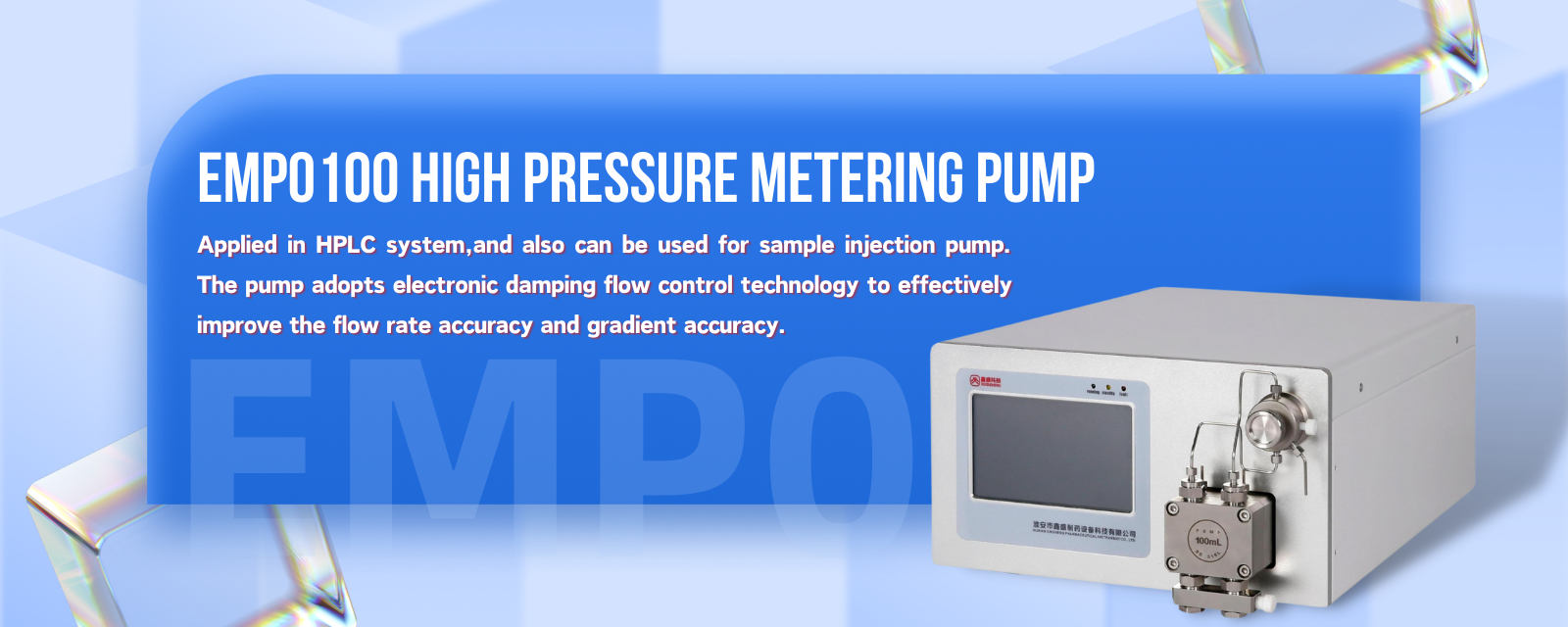

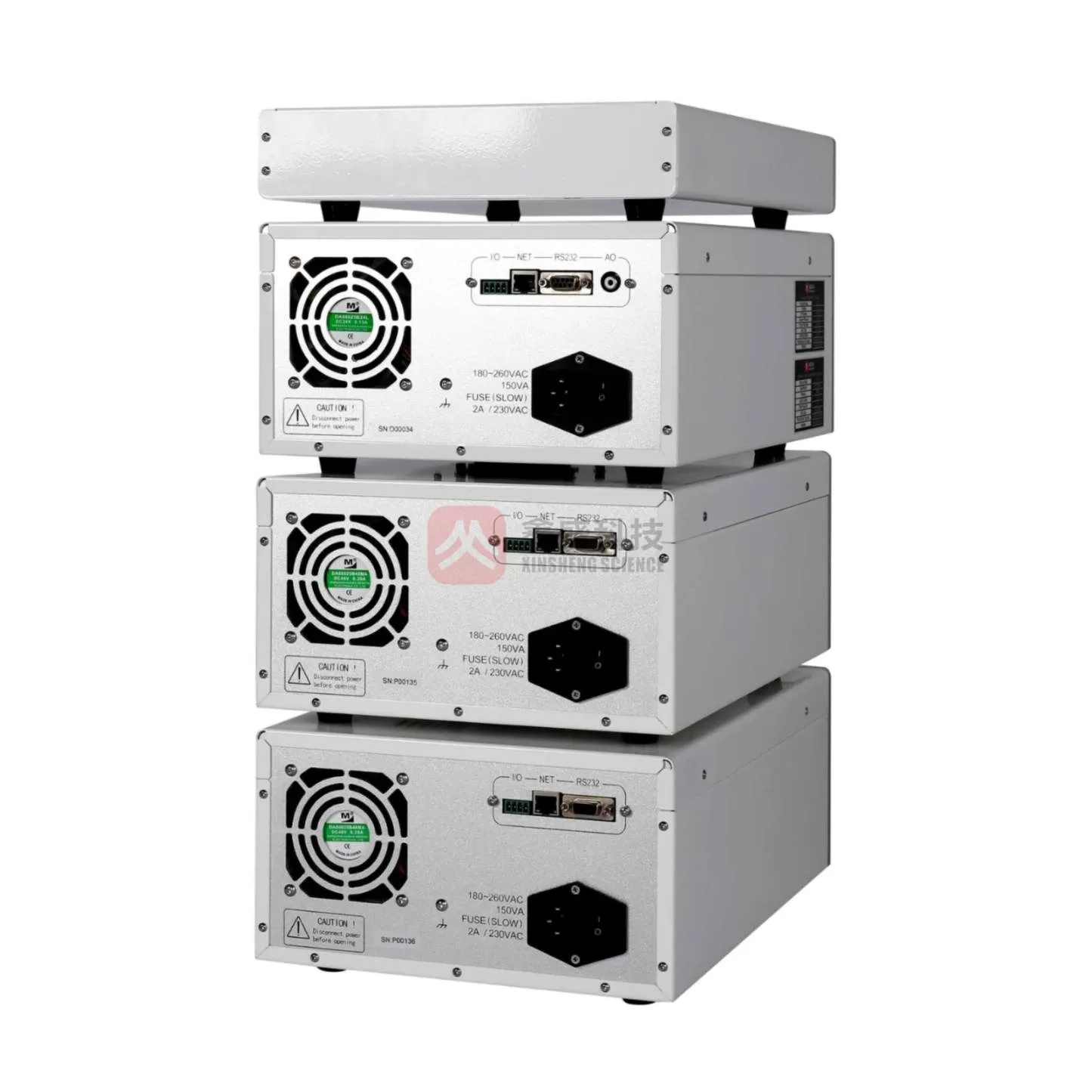

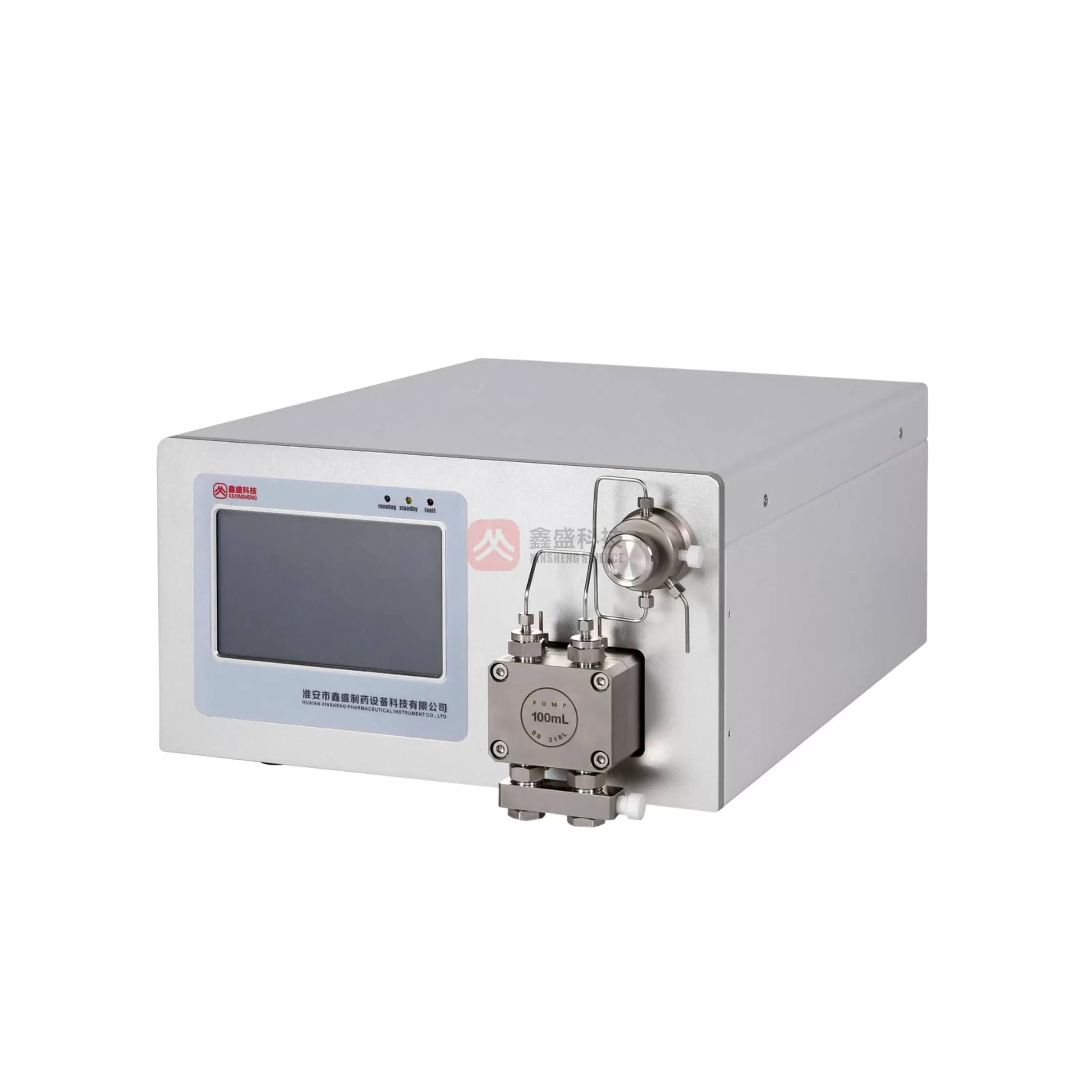

This system is xinsheng newly developed product in order to make all functions integrated into One screen. Xinsheng's model M-Prep EC2010 is our 100ml Binary Preparative HPLC System. This system equipped with two EMP0100 Preparative liquid chromatography pumps (100ml/min) and one EUD2000 UV detector, can realize high pressure gradient elution mode with dual pumps. It can be used for semi-preparative and other lab scale products' separation and purification , realized sample injection by a manual 6-way injection valve, the sample injection volumes can reach to grams to satisfy lab scale and research application. Flexible system configuration can be used for 20-50mm pre-packed column and DAC-50 series column.
Preparative HPLC System

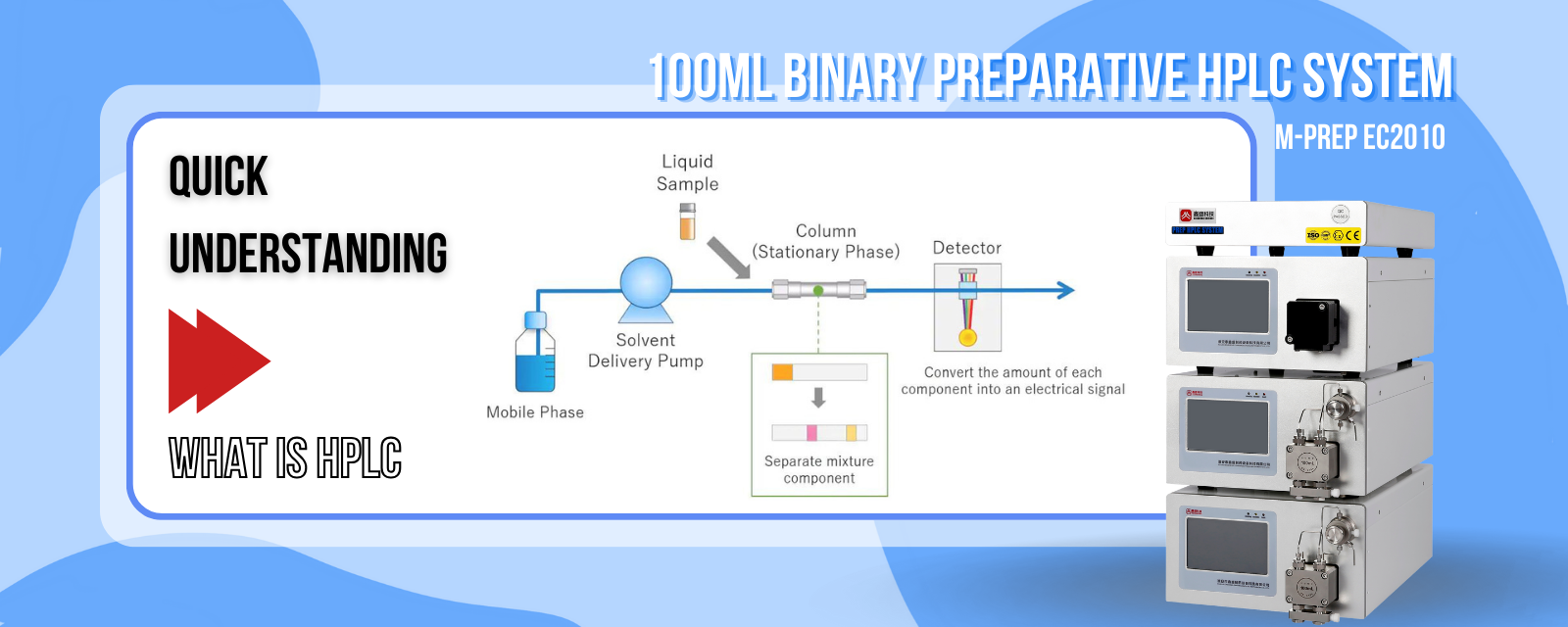

The general objective of preparative chromatography is to isolate, purify and collect your target compounds. Preparative applications are often initially performed on an analytical level and need to be upscaled. Depending on the desired scale, the requirements for a preparative liquid chromatography system differs in eluent supply, sample injection, column ID, and detection range.
Xinsheng preparative liquid chromatography system has the characteristics of high efficiency, high speed, high automation and is widely used in the separation and purification of pharmaceutical intermediates, biopharmaceuticals, synthetic drugs, natural products, fine chemicals, food additives and other fields.
Evoclass® Series Liquid Chromatography System
Evoclass® series liquid chromatography system is developed by xinsheng. This is xinsheng Non-ATEX and Touch Screen Model Preparative HPLC System. It is used for laboratory analysis, small-scale and pilot scale up. We customize our systems to meet your chromatography scale-up and purification challenges. Benefit from our experience in preparative liquid chromatography. Evoclass® preparative LC systems are the perfect solution for frequently changing separation tasks–from milligram to kilogram scale.
Configure your prep HPLC system from injection to detection and choose between different materials, flow rates, valves and detectors. The infusion pump head and liquid contact materials can be selected from SS316L, titanium alloy, PEEK etc., which are suitable for the special requirements of different systems. Dual wavelength UV visible detector, which can expand the detection range, and can also be equipped with differential refractive detector or evaporative luminescence detector.
Features of Xinsheng Evoclass® Liquid Chromatography System
01.Mature products, stable performance
02.Perfect supporting device, easy to operate and fast
03.Column size: diameter 50~2000mm, can be customized
100ml Binary Preparative HPLC System-Touchscreen Model | |
Article Number | LC021017T |
Model | M-Prep EC2010 |
Prep HPLC Pump | 100ml/min(*2) |

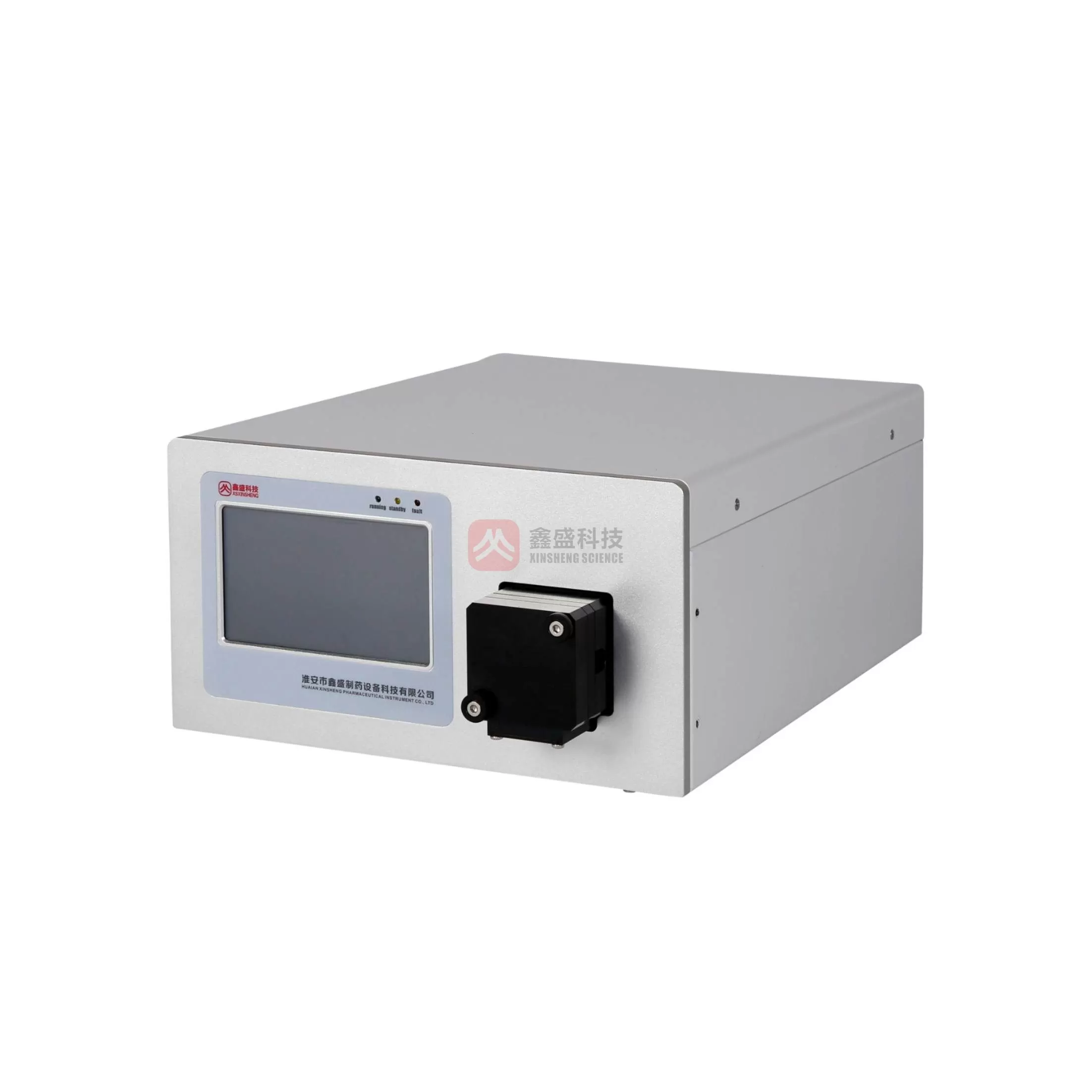

UV Detector | 190-400nm(deuterium and tungsten optional) |
Preparative Flow Cell | 1/16" |
Manual Injection Valve | Standard(analytical or preparative injection valve) |
Sample Loop | 10ml(optional 20ml) |
Preparative Dynamic Mixer | 1/16",10Mpa,316L |
Online Filter | 30mm(1/16"),10Mpa,316L |
Chromatography Workstation | LabChrom |

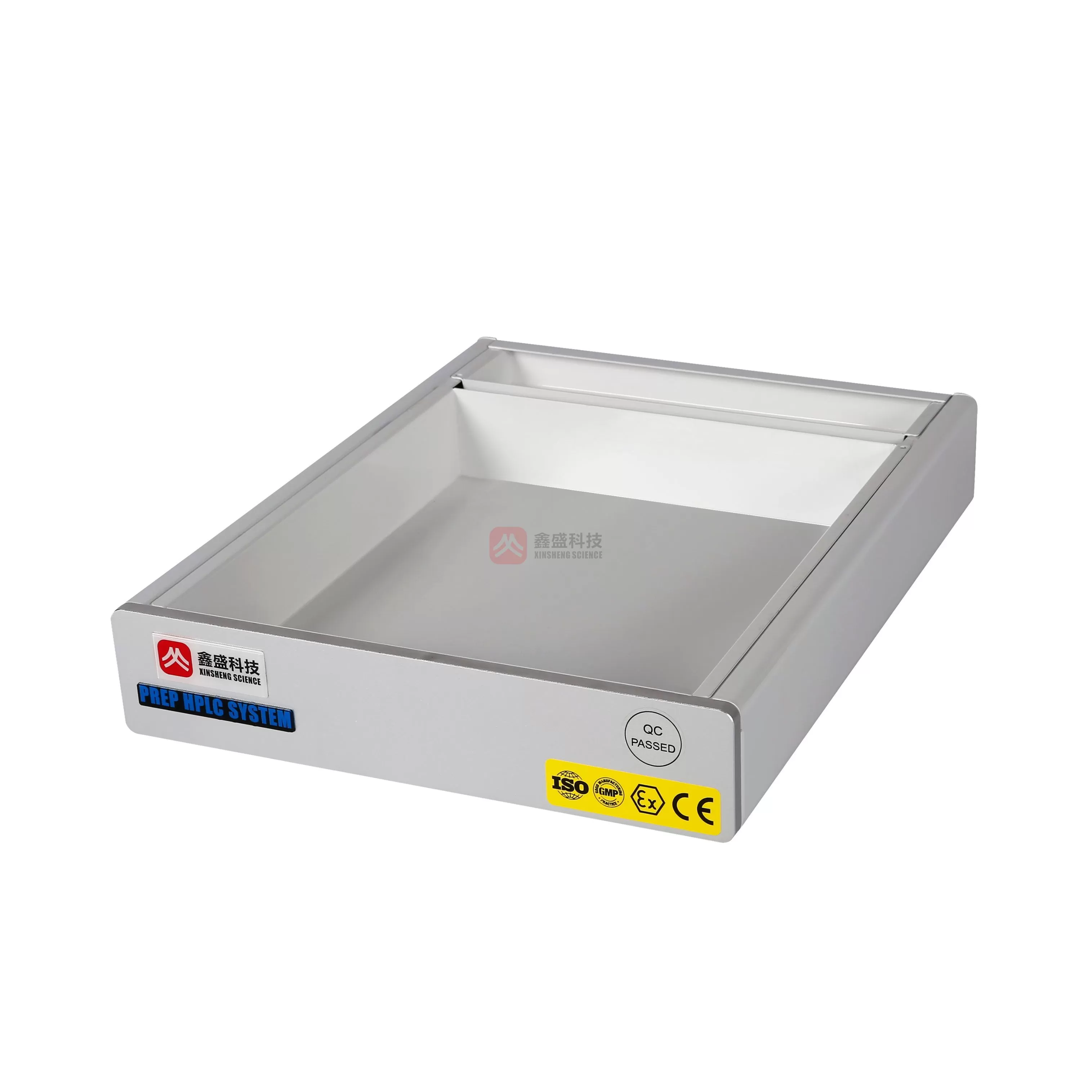

Solvent Tray | Standard |
Preparative HPLC System Start-up Tool Kit | Standard |
Fraction Collector | Optional(eight channel) |
ID30/40/50 Prepacked Column | Optional |
ID50 Spring Column | Optional |
Adaptive DAC Column | DAC-50 series column(optional) |
Prep HPLC System can be configurated based on your process application | |
