The rotary evaporator use stepless speed to make the glass rotating bottle constant rotation, the material in the bottle wall to form a large area of uniform film, and then through the intelligent constant temperature water bath heat the rotating bottle uniformly, high-speed evaporation under vacuum case, after the efficient glass condenser cooling, the solvent vapor will recycle in the collection bottle.
The rotary evaporator use stepless speed to make the glass rotating bottle constant rotation, the material in the bottle wall to form a large area of uniform film, and then through the intelligent constant temperature water bath heat the rotating bottle uniformly, high-speed evaporation under vacuum case, after the efficient glass condenser cooling, the solvent vapor will recycle in the collection bottle.

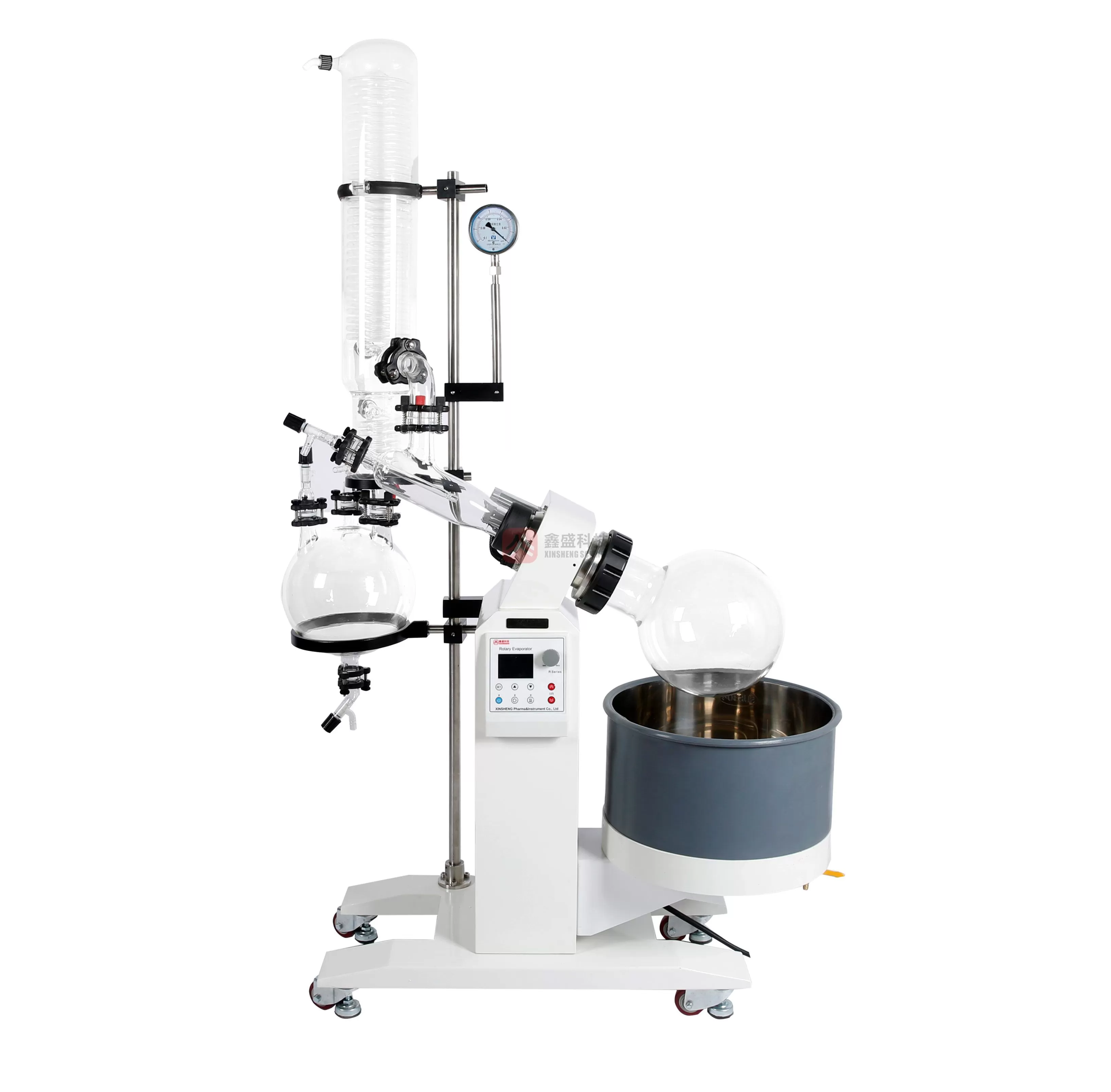

10L Rotary Evaporator | |
Article Number | RV041026 |
Model | RE-A10 |
Temperature control（℃） | RT～99 |

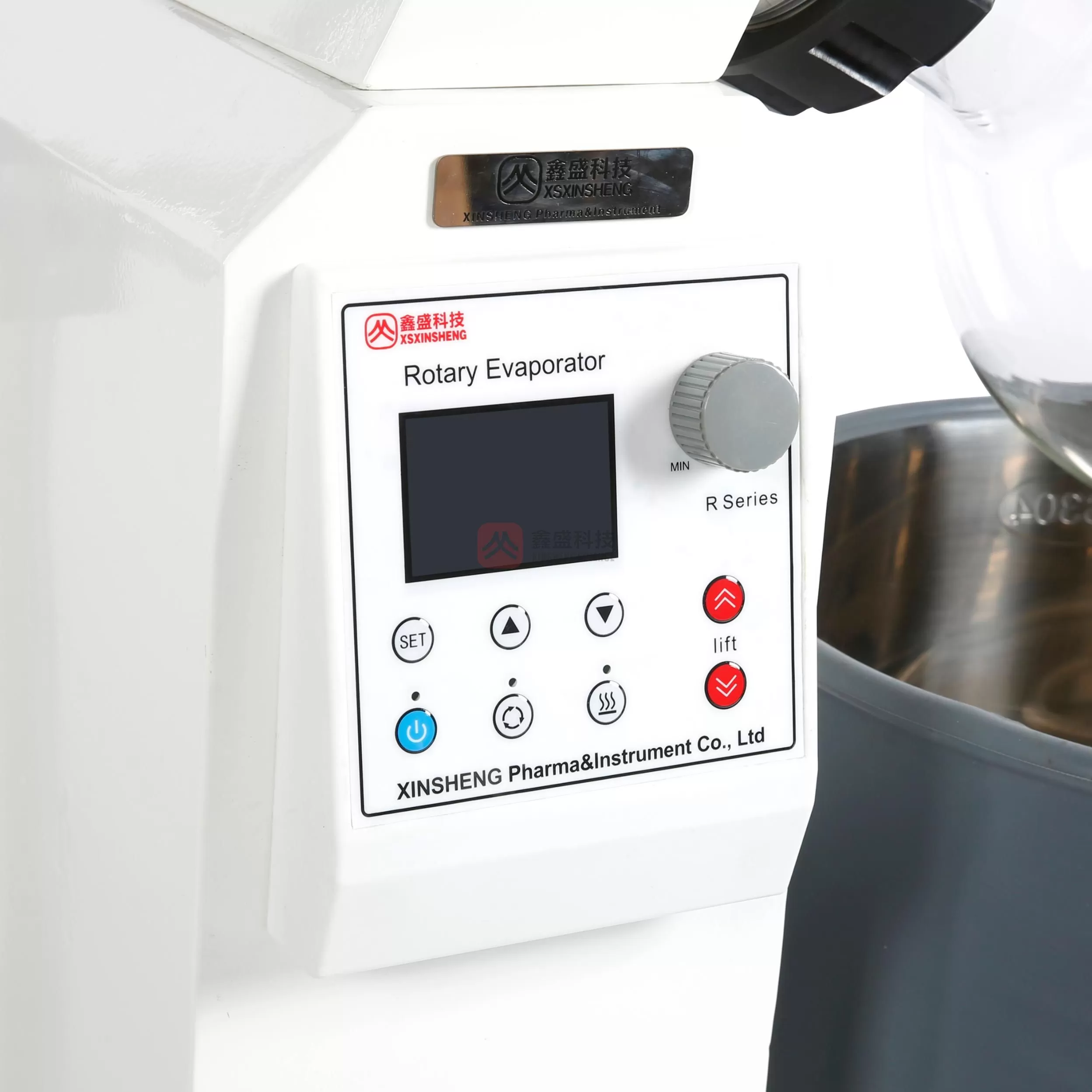

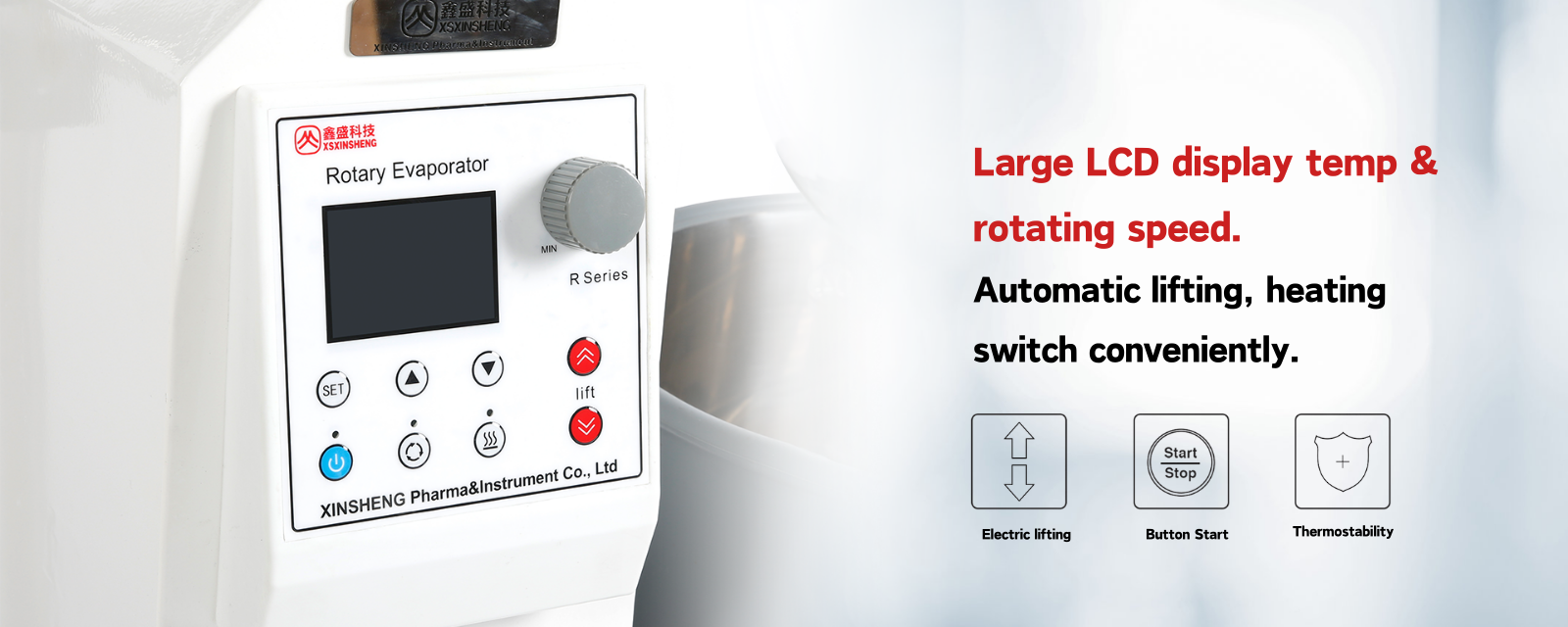

Control screen | LCD |
Heating power（W） | 3000 |
Power（W） | 3300 |
Pressure rate | ≤2kPa/h |

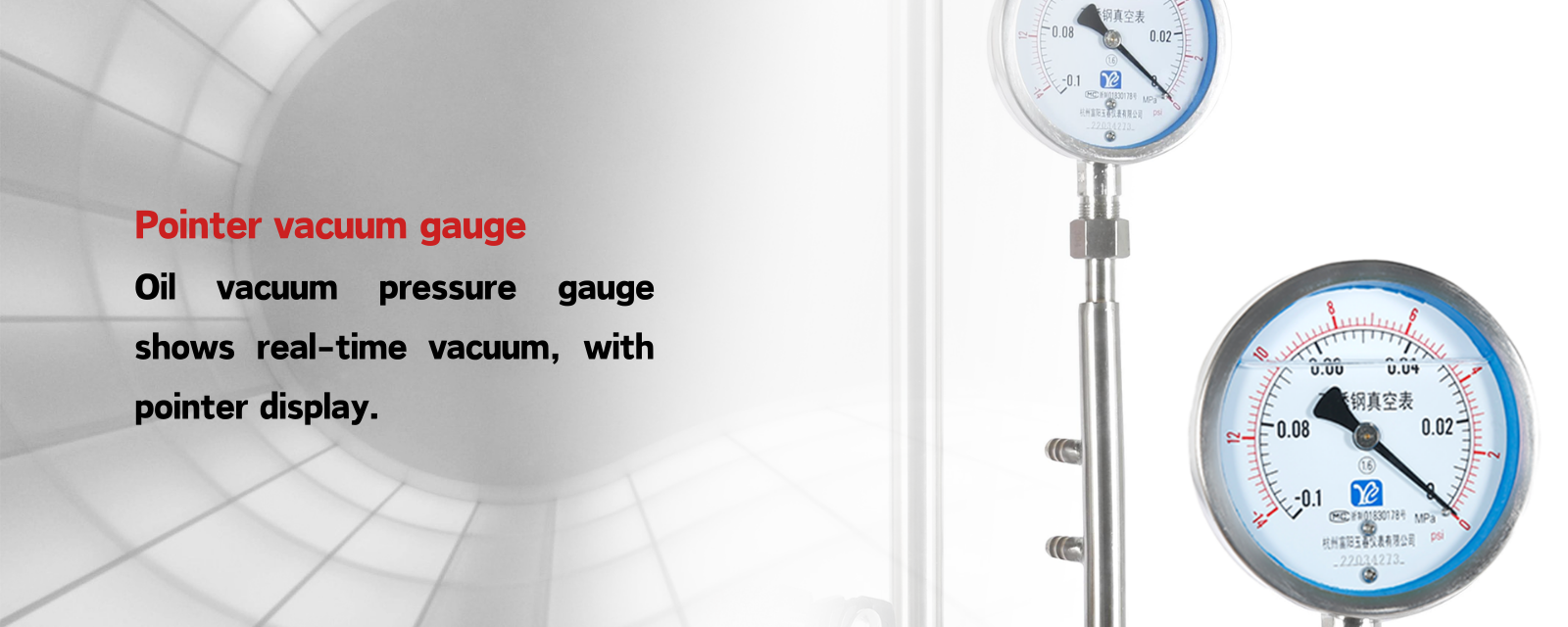

Maximum vacuum（Pa） | 399.9（≤3mmHg） |
Rotary motor power（W） | 100 |
Host speed | Digital DC stepless speed regulation |
Motor rotating control（rpm） | 0～120 |

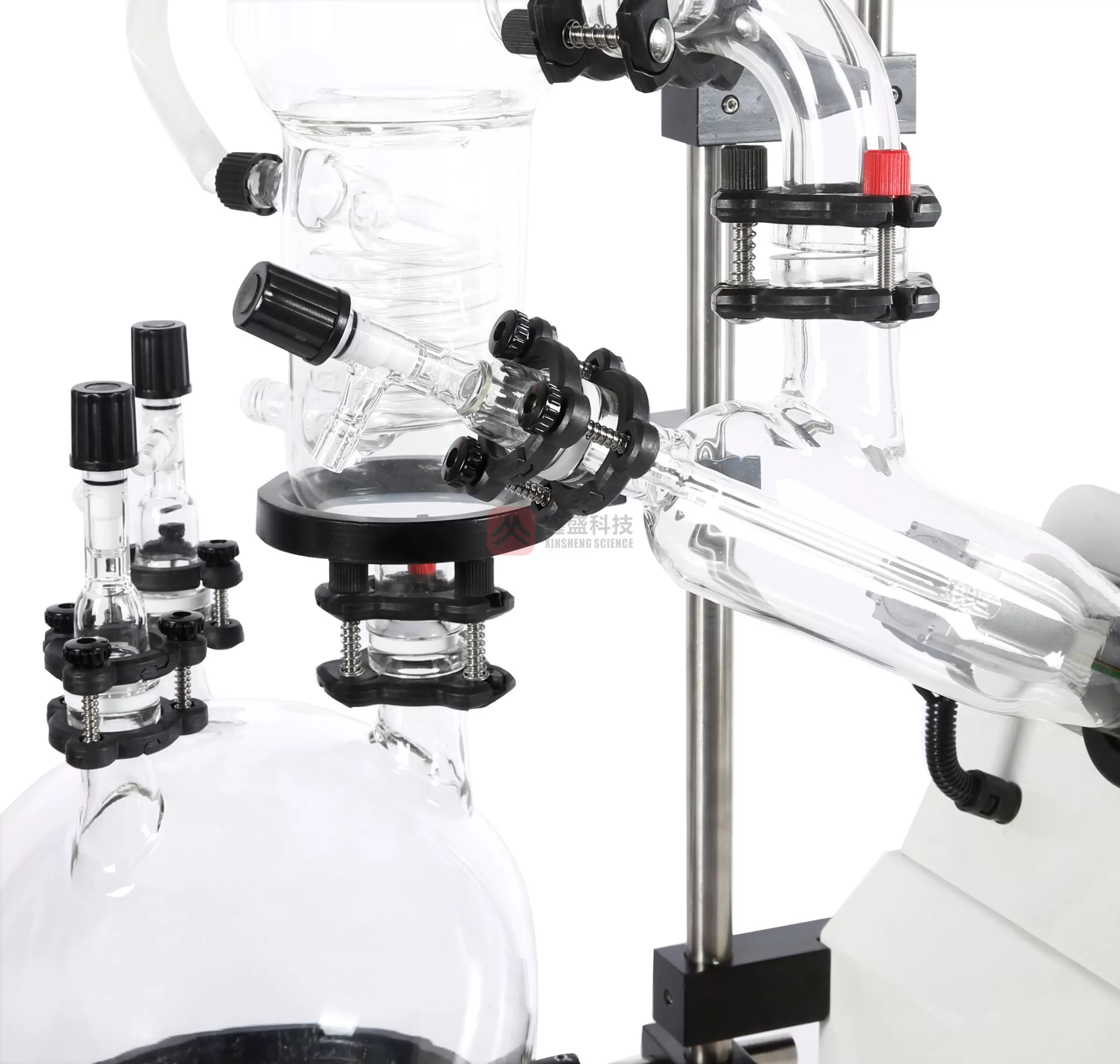

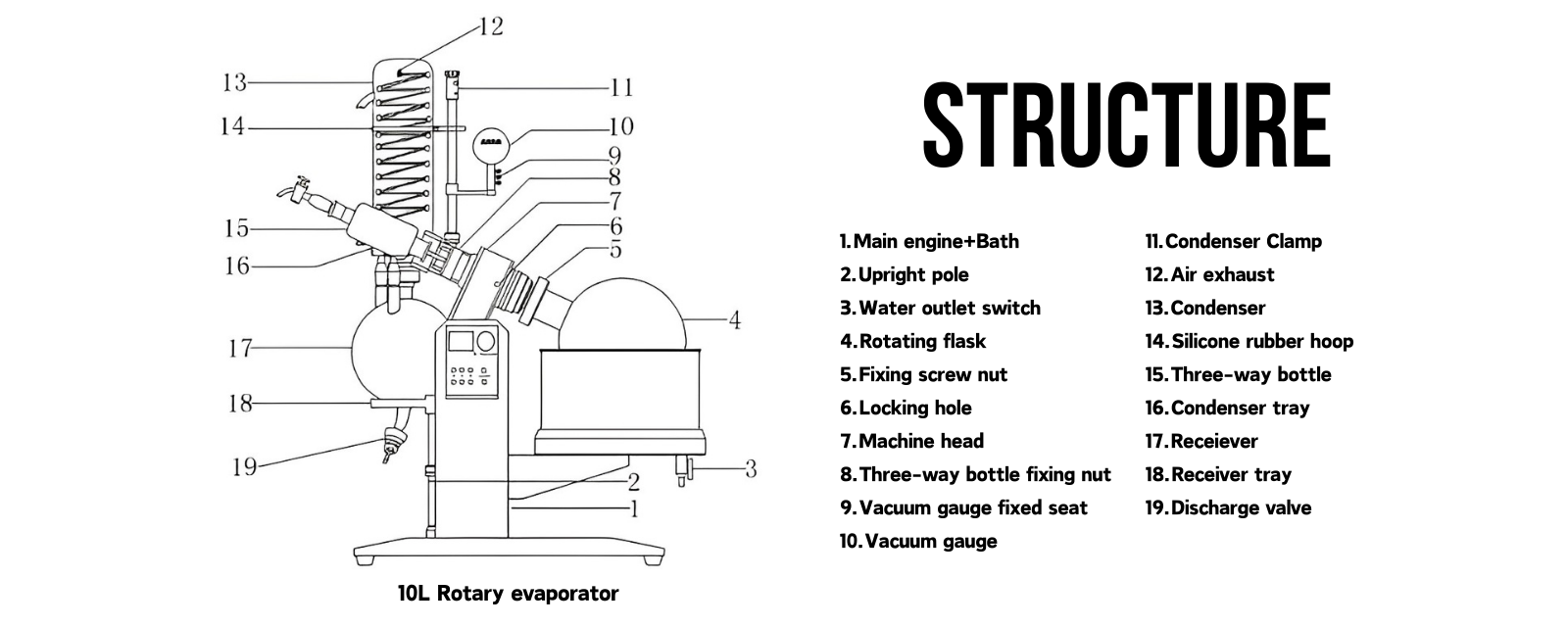

Condenser | Vertical, main cold + sub cold, high efficiency three-return condenser |
Condensation area（㎡） | 0.64 |

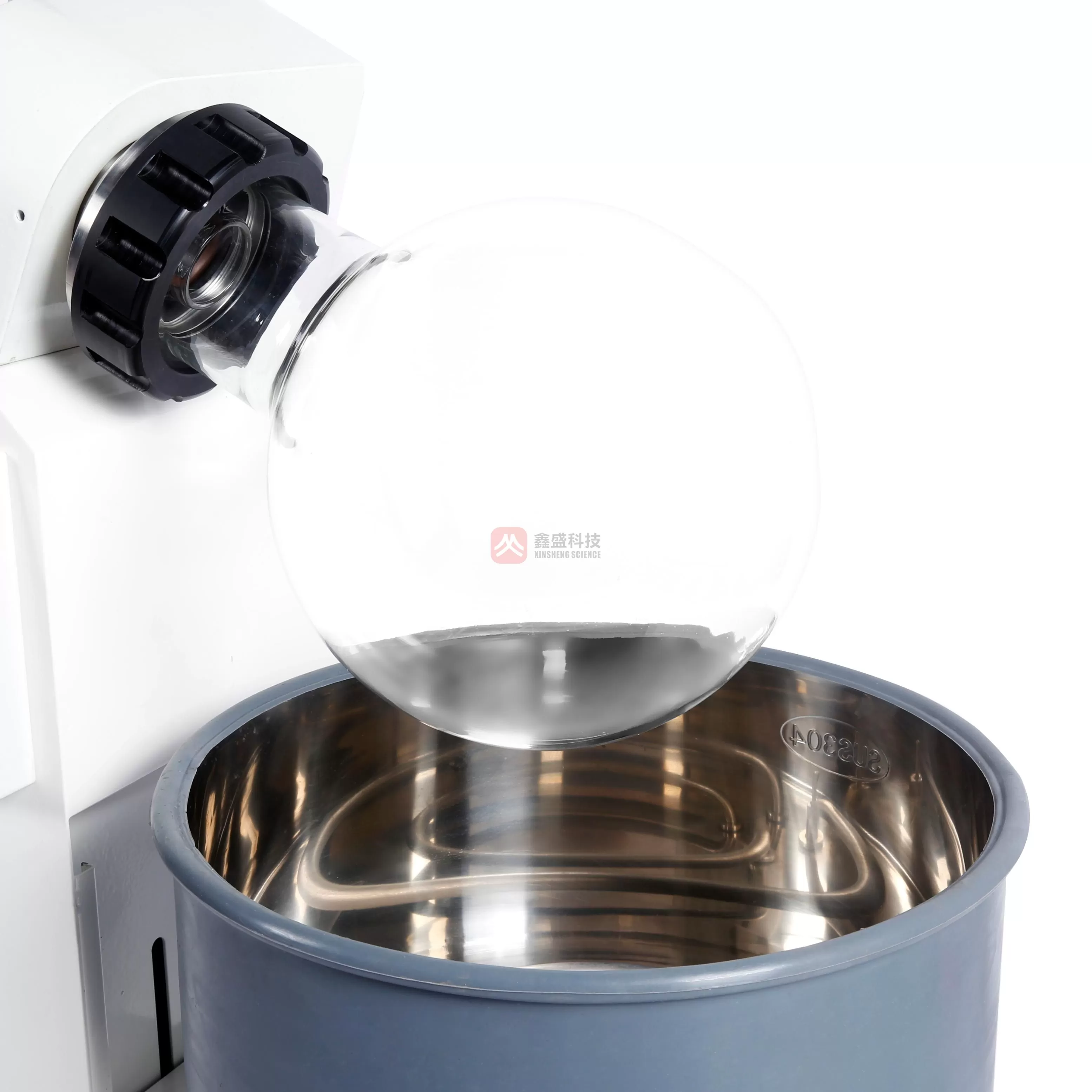

Rotary flask | 10L，Flangetype Ø125mm |
Collection flask（L） | 5 |
Bath material | Stainless steel, SUS304 material |
Bath size（mm） | Ø350mm×220mm |
Temperature accuracy（℃） | ±1.5 |
Lifting mode | Electric lifting |
Lifting distance | 0～160 |
Lifting speed | 10mm/s |
Bath power（W） | 4000 |
Customized Available; Contact us for Contract Manuafcturing | |
