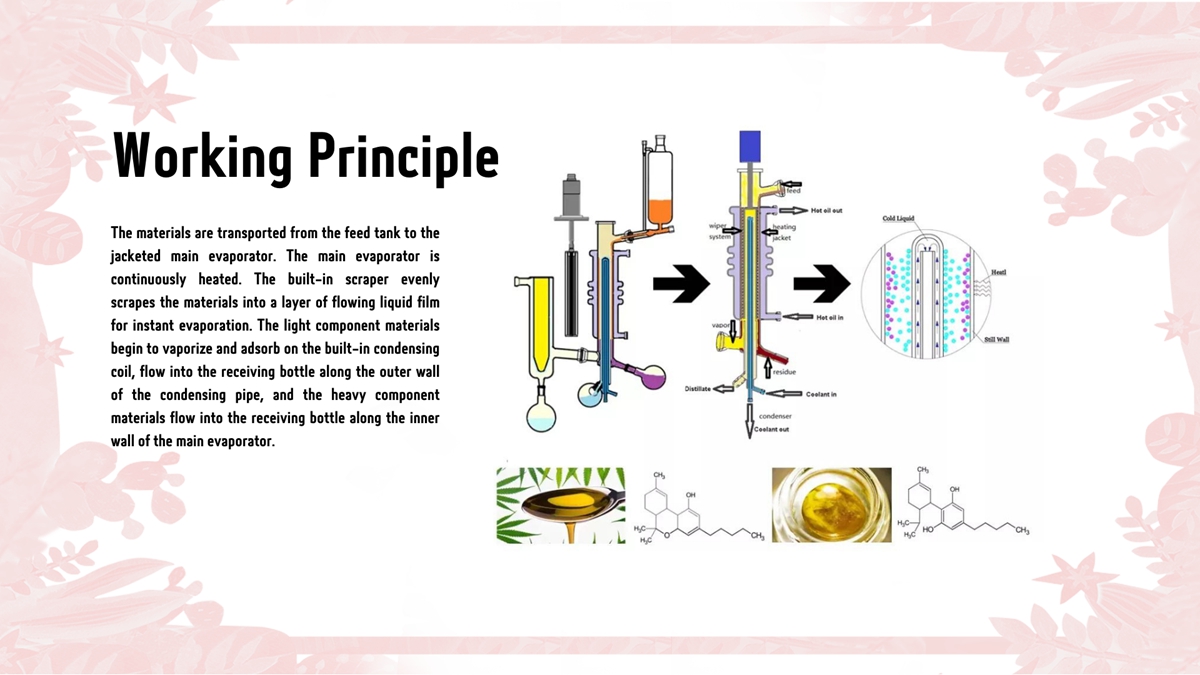

Molecular distillation is the best thermal separation machine for heat-sensitive material because it is the gentlest type, causing the least amount of thermal degradation of product. It is a process of separation, purification and concentration of natural products, complex and thermally sensitive molecules. molecular distillation units are wildly used for purification of oils, such as plant/herb oil, garlic oil, cod liver oil in chemical and pharmaceutical industries.

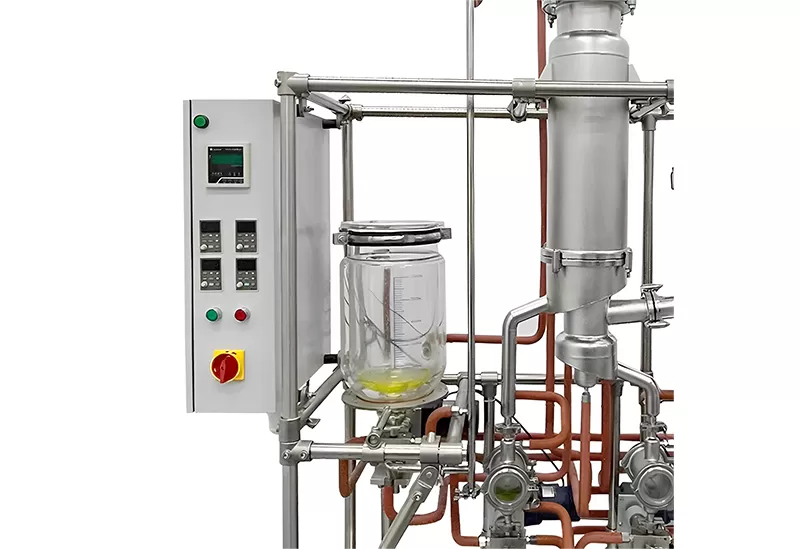

| Stainless steel molecular distillation system | |
| Model | SSD-07 |
| Effective evaporation area (m2) | 0.7 |
| Feeding speed L/h | 40-90 |
| Frame material | 304 seamless stainless steel, the contact surface with the material body is 316 |
| Max speed RPM | 450 |
| Speed（rpm） | 0-450 |
| Motor | 400W Adopting German technology, constant speed, low noise, no brushes, no sparks, safe and stable, and can work continuously |

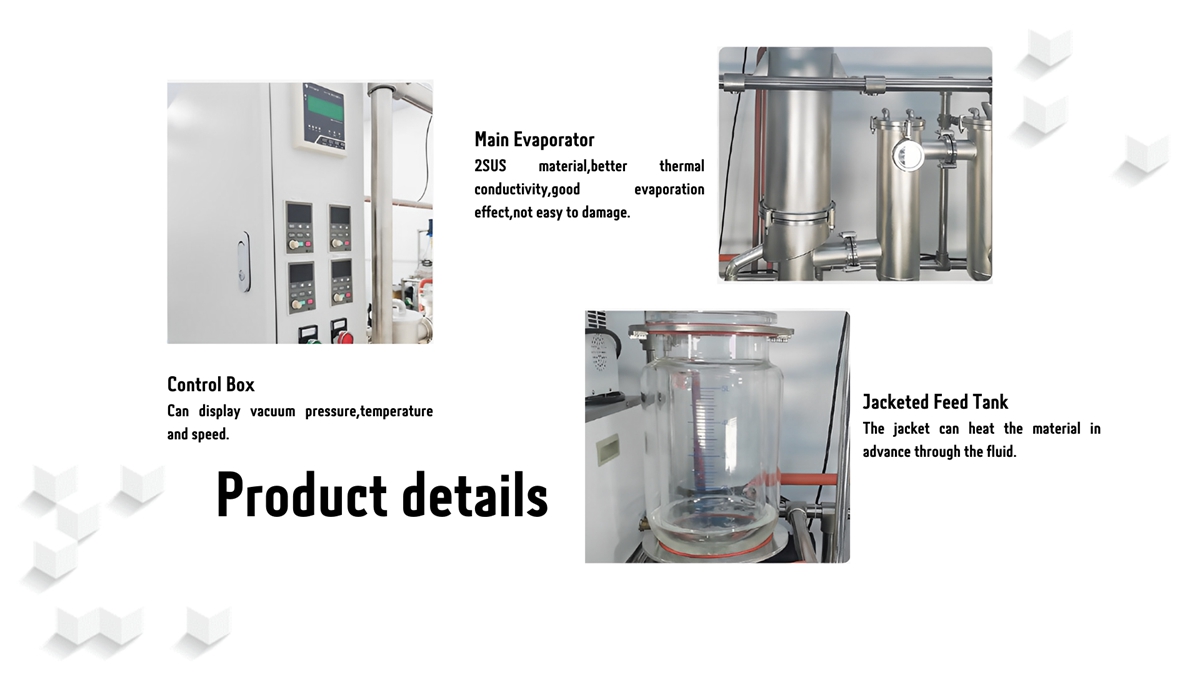

| Feed tank | Double jacketed feed tank |
| Control Panel | Digital display of temperature and speed, flexible adjustment of speed through the knob |

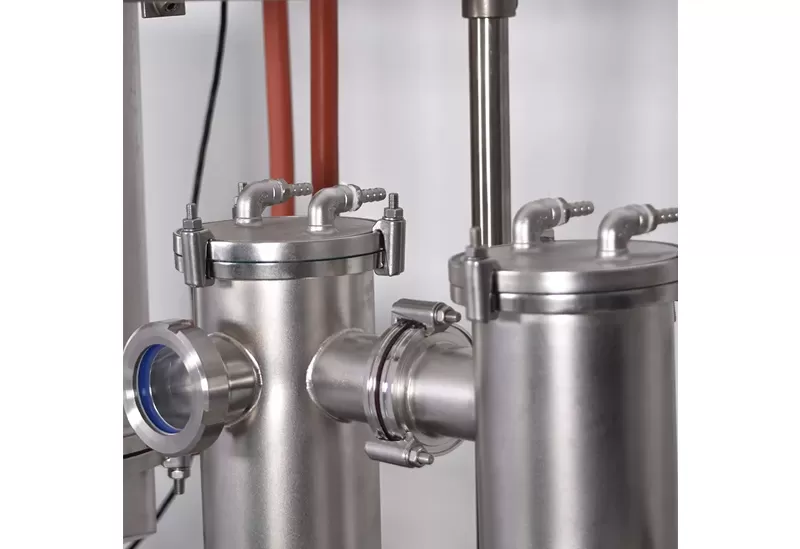

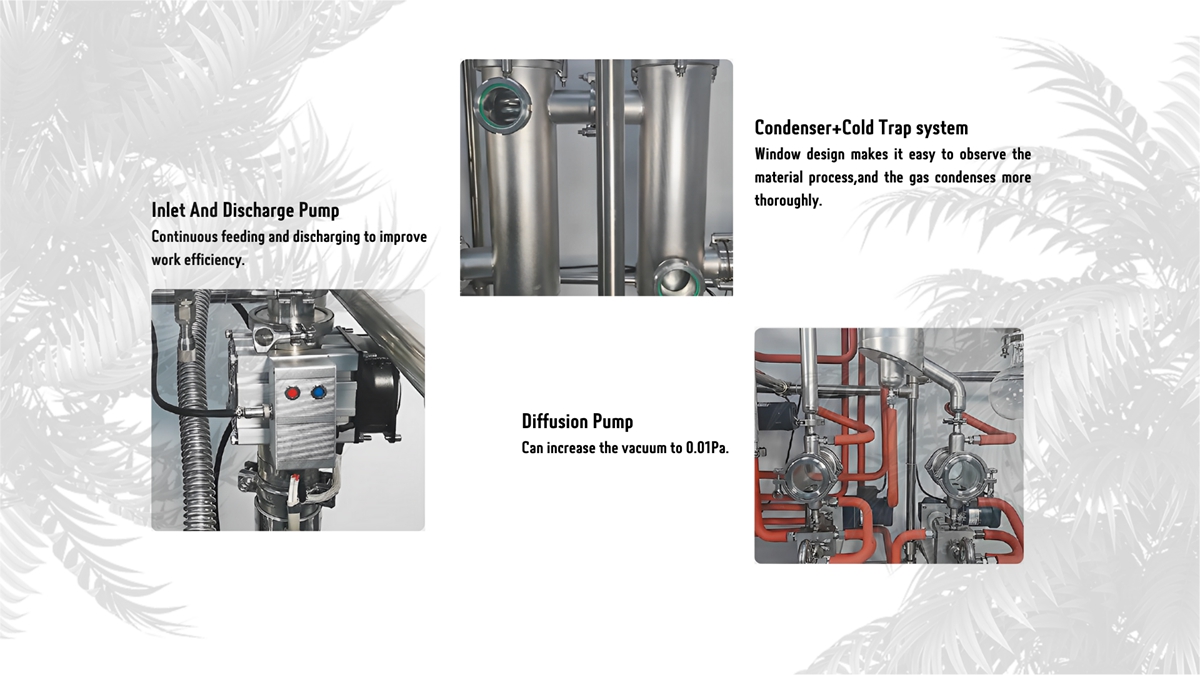

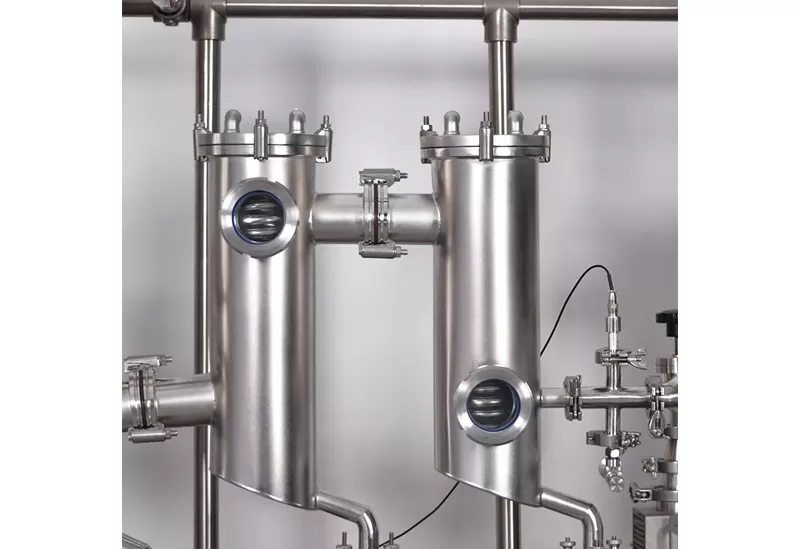

| Condenser | Snake-shaped condensing coil, large condensing area and high efficiency |
| Move method | 4 polyurethane (PU) casters with brakes and universal casters |
| Inlet and outlet oil circulation port | Using screw type, low in and high out |
| Power supply（V） | 220V/50Hz（can be customized） |
| Tank working temp | －90~250℃（Long-term use is recommended within 220 degrees） |
| Customized Available; Contact us for Contract Manuafcturing | |
