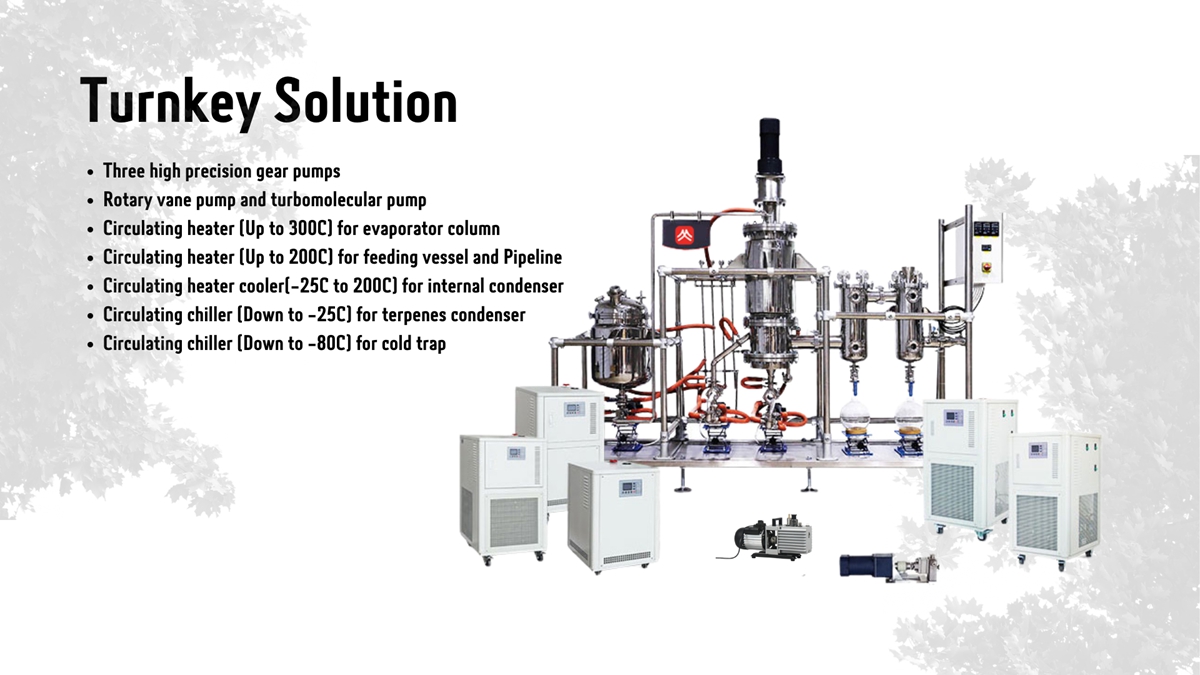

In the molecular distillation system system, material is delivered from a feed flask into a cylindrical evaporation section,having heating on the outside and a diagonally slotted wiper mechanism forcing liquid around and downward in a thin film on the inside. In the center of the body is a closely positioned internal condenser, providing a short path for vapor molecules traveling from the heated surface to the condenser surface.

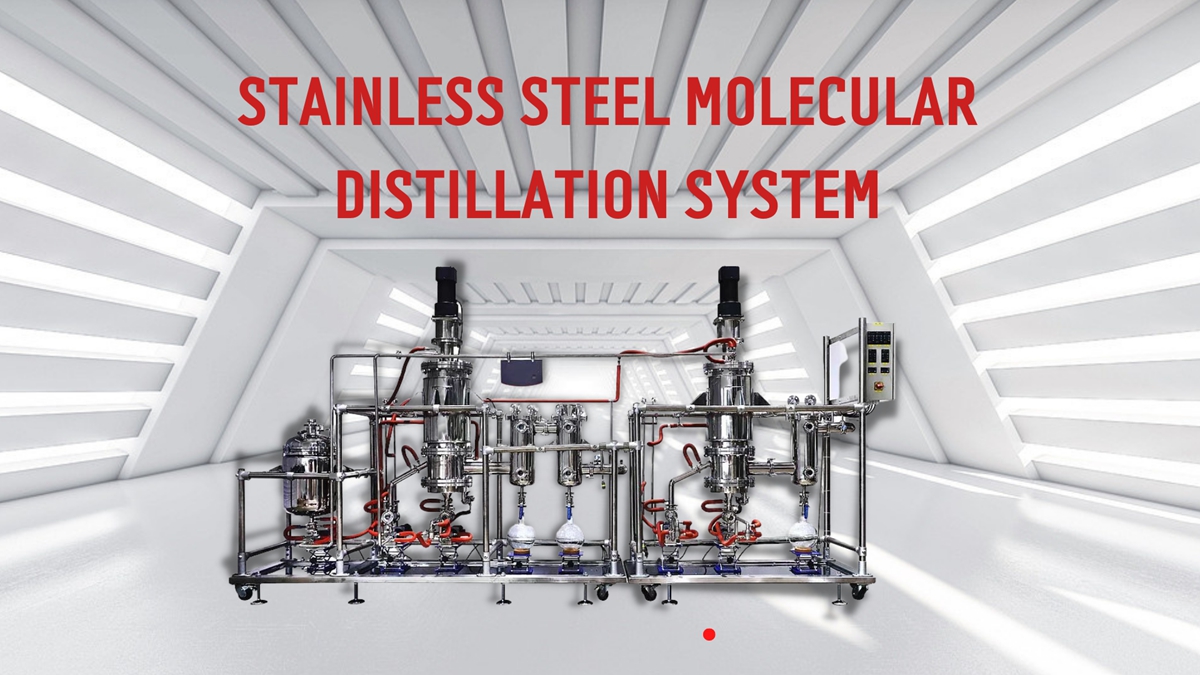

| Stainless steel molecular distillation system | |||
| Model(L/h) | SMD-10 | SMD-20 | SMD-50 |
| Feeding speed | 20~100 | 50~250 | 100~500 |
| Throughput(L/h) | ~30 | ~75 | ~150 |
| Evaporation area(㎡) | 1 | 2 | 5 |
| System vacuum(Pa) | ≤10Pa(No Load) | ||
| Agitate motor speed(rpm) | ≤400 | ||

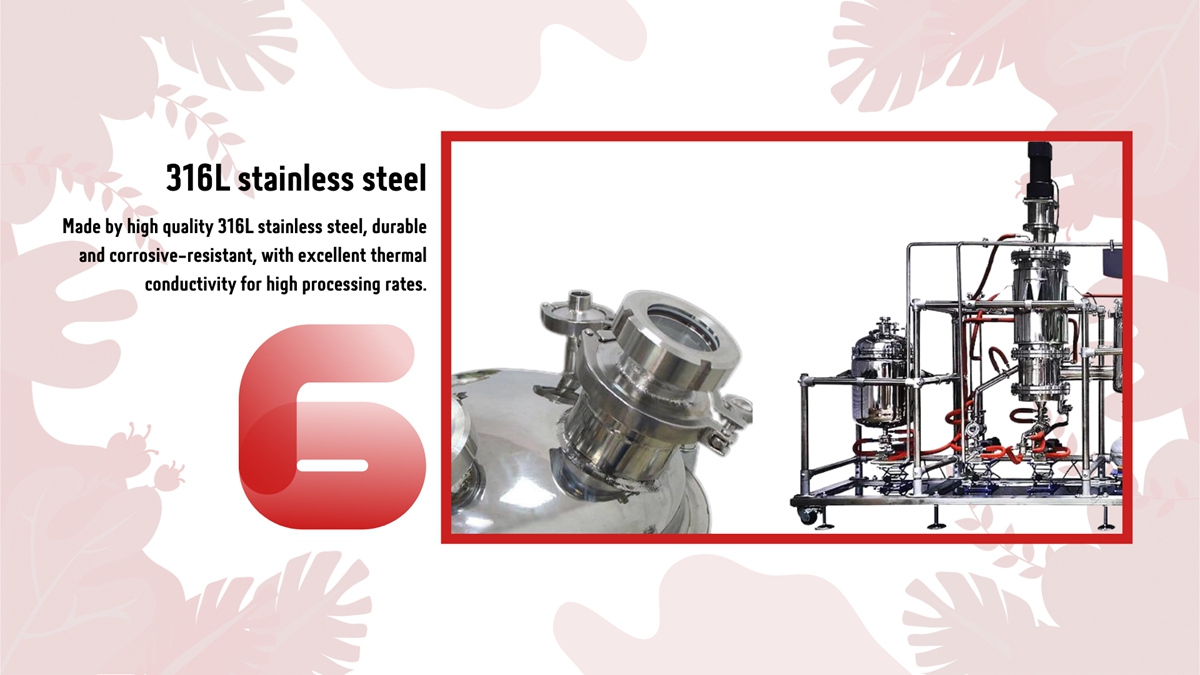

| Material(wet part) | High borosilicate glass, PTFE, SUS316L | ||
| Seal gasket standard | Food grade fluororubber(options: PTFE) | ||
| Certification | CE(option: UL, ATEX...) | ||
| Wiper type | Centrifugal scraper(PTFE) | ||
| Agitator drive | Magnetically coupled drive | ||
| External condenser | √ | ||

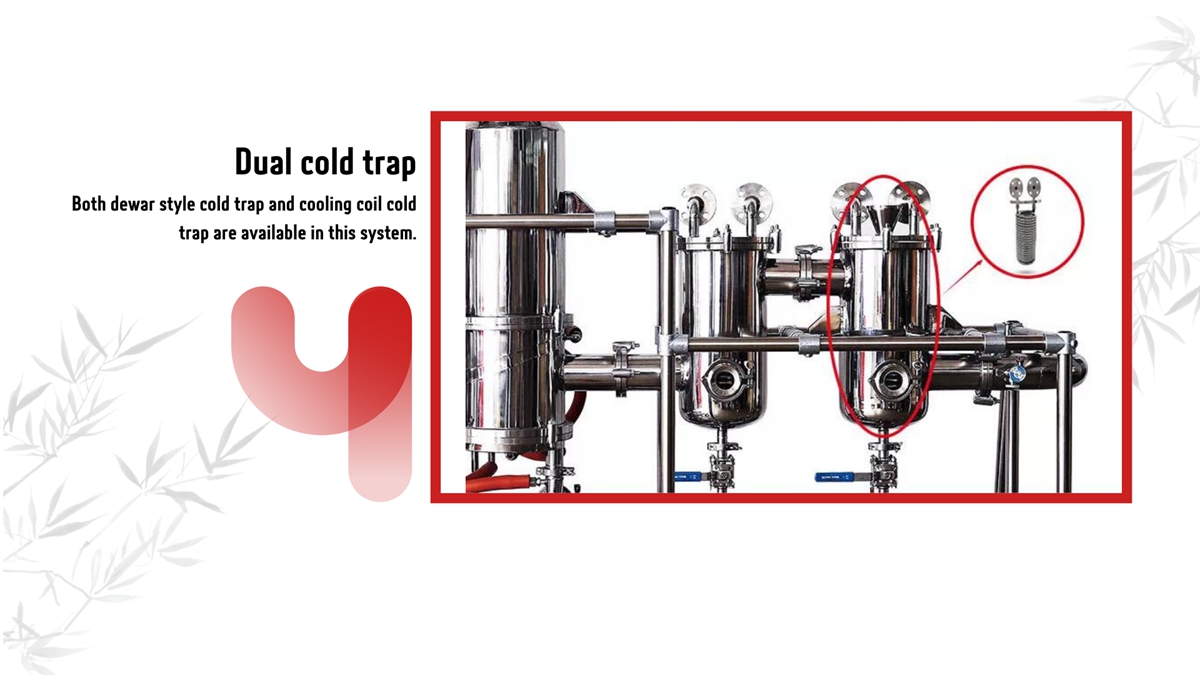

| External cold Trap | √ | ||

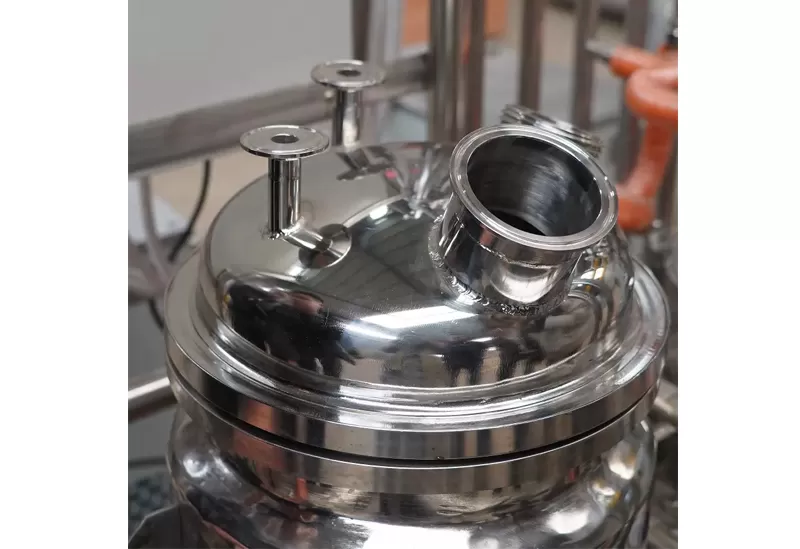

| Feeding tank(L) | 100 | 100 | 200 |

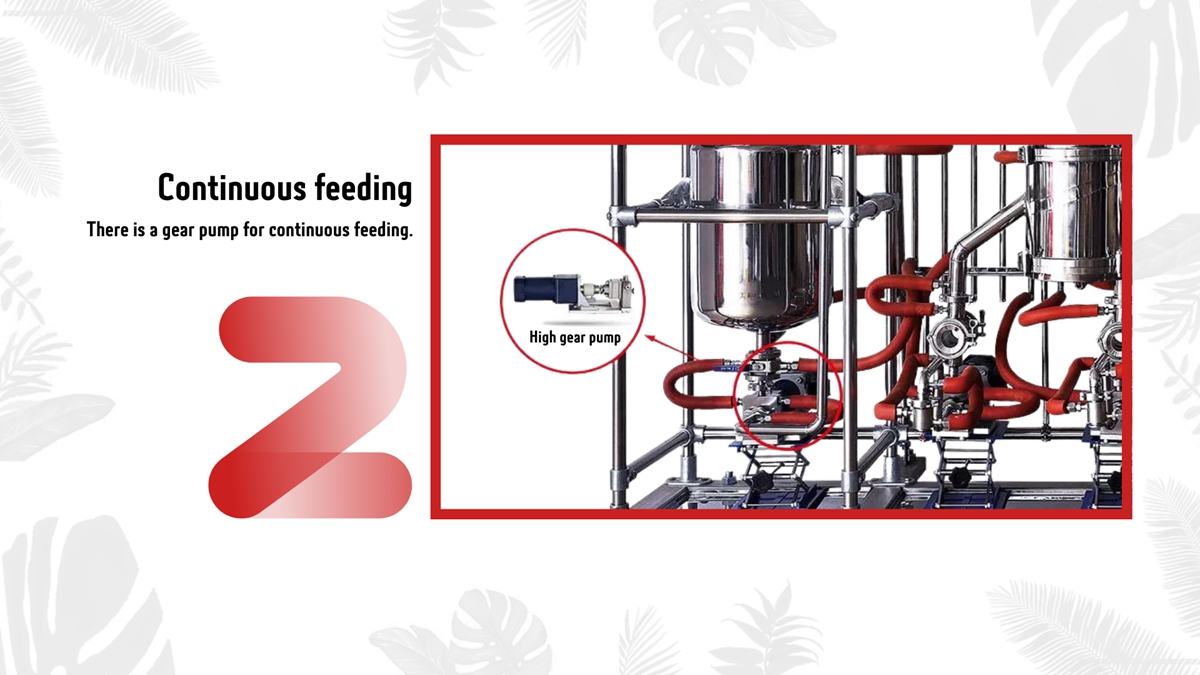

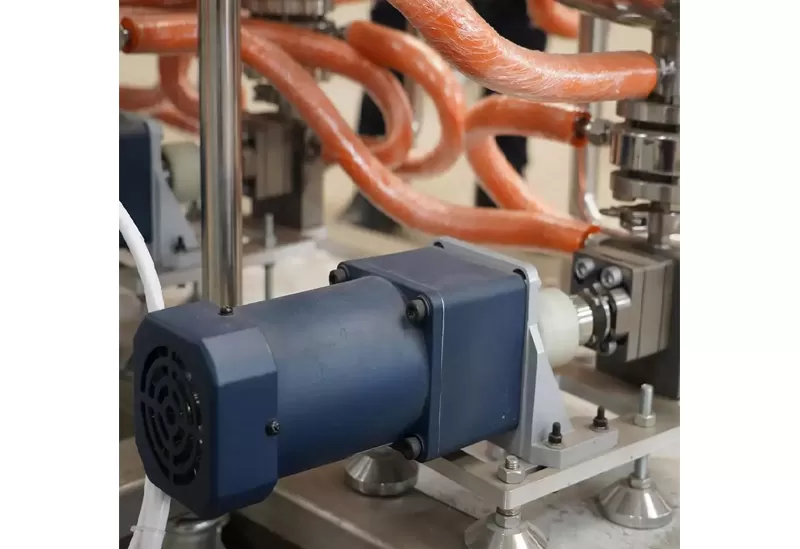

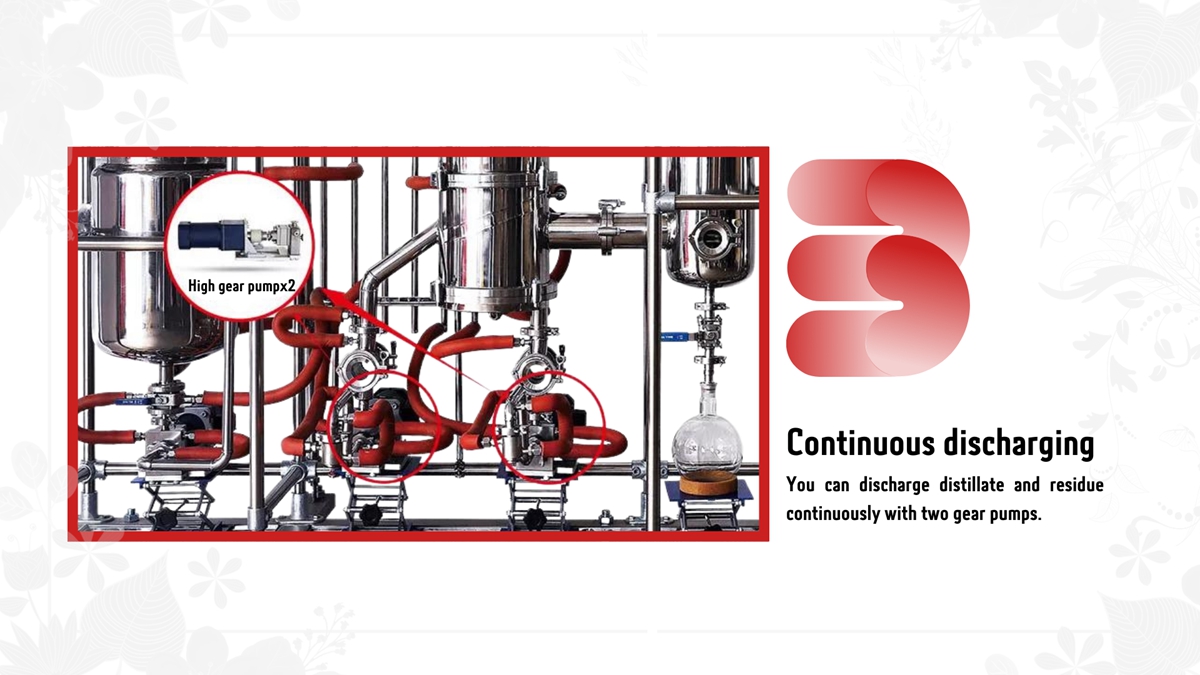

| Feeding pump | Gear pump(one-way valve installed at outlet) | ||

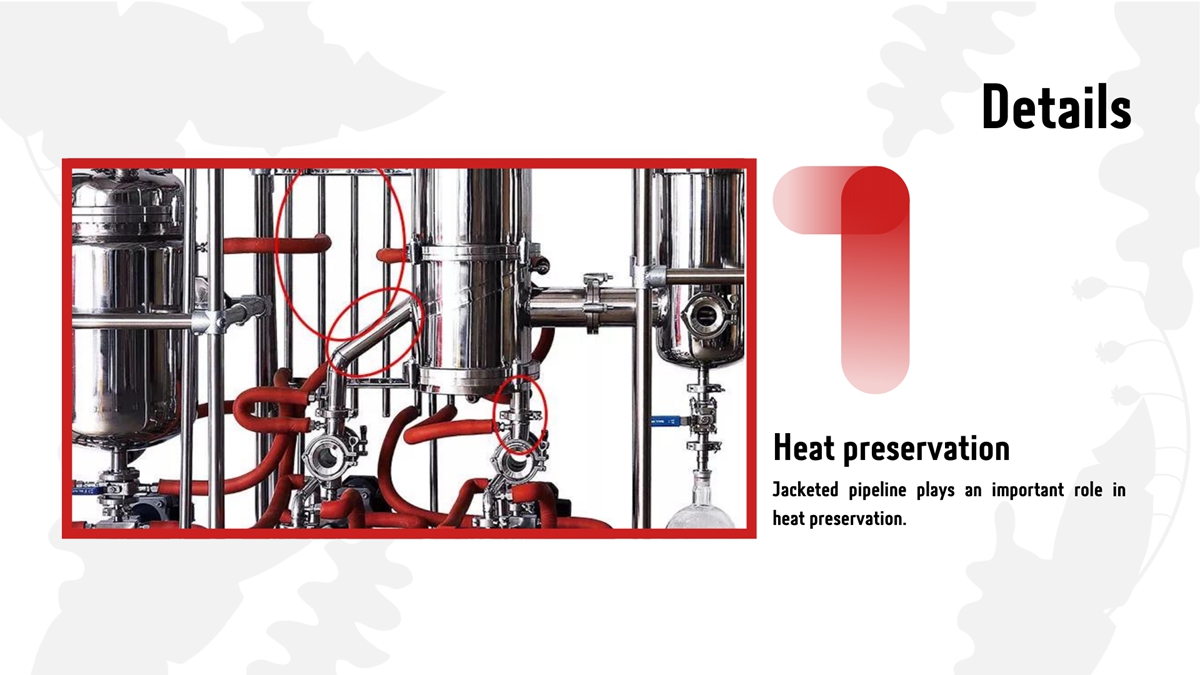

| Heat preservation | The pump head, conveying pipe and one-way valve are inter layer, which can be insulated by heat conduction oil | ||
| Holding temperature(℃) | RT~200℃ | ||
| Receiving flask | —— | —— | —— |
| Electrical equipments | 220,1P(customized) | ||
| Installation dimension(mm) | 3900×1400×3900 | 4200×1550×4650 | 4500×1550×6500 |
| *1. Due to different material properties, the throughput will fluctuate, please subject to test results; *2. Diffusion pump can only be used as a second stage vacuum pump with a first-stage pump. | |||
| Customized Available; Contact us for Contract Manuafcturing | |||
